What is the FAW Tyre Module

  • 1. FAW 315/80R22.5-20PR Tyre Module – Core Rolling Assembly
    The FAW 315/80R22.5-20PR Tyre Module represents a complete, high-capacity rolling solution designed specifically for FAW heavy-duty trucks. This integrated module delivers exceptional load-bearing capability (20PR) and durability for demanding on-road applications, forming the critical interface between the vehicle and the road surface.
  • 2. Wheel and Tyre Assembly: The Foundation
    Central to the module is the robust Wheel and Tyre Assembly. This assembly combines the high-traction 315/80R22.5 20 Lays Tyre, renowned for its long tread life and stability under heavy loads, with a precisely engineered 22.5X9.00 Wheel Rim and Spoke Assembly. This forged or pressed steel rim and spoke structure provides the necessary strength and secure bead seating for the large-section tyre, ensuring reliable performance mile after mile.
  • 3. Wheel Cover Assembly & Nut Protection
    Enhancing both aesthetics and functionality, the Wheel Cover Assembly serves as a protective shield. It safeguards the wheel nuts and hub components from road debris and corrosion. Securing this cover and providing a finished look is the Wheel Nut Cover, while the critical Nut And Gasket Assy ensures the wheel itself is securely fastened to the hub with the correct clamping force and weather sealing, preventing loosening and moisture ingress.

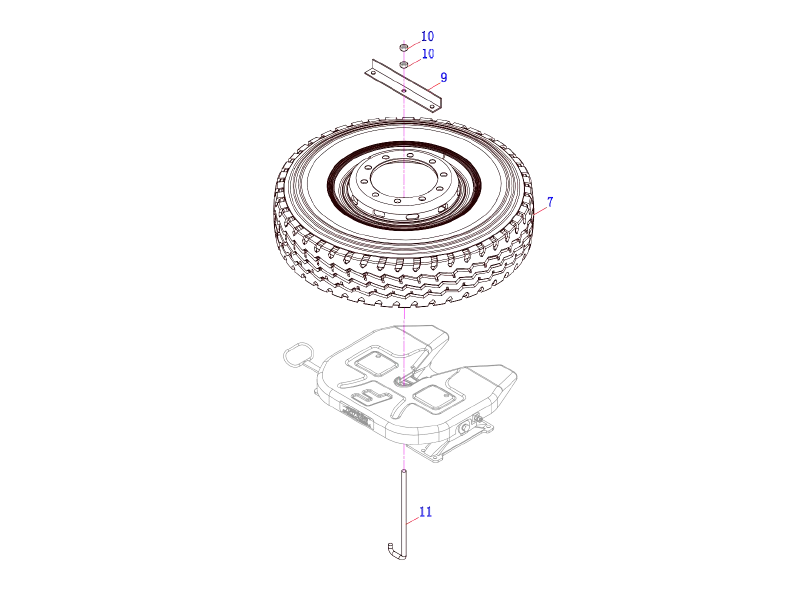

  • 4. Securing the Spare: Fixed Spare Wheel Assembly
    For reliable backup, the module includes provisions for a Fixed Spare Wheel Assembly. This features another 315/80R22.5 20 Lays Tyre mounted on a matching 22.5X9.00 Wheel Rim and Spoke Assembly, ensuring a ready replacement matches the driving wheels exactly. This spare assembly is typically mounted securely to the chassis.
  • 5. Mounting Hardware: Push Plate & Hexagon Nut
    Essential hardware ensures the spare wheel is held firmly in place. The Push Plate Assy acts as a pressure plate or backing component against the spare wheel rim. It is secured using high-tensile Hexagon Nut fasteners, which are tightened to precise specifications against the Push Plate Assy to clamp the spare wheel securely onto its mounting bracket, preventing movement during transit.

Product Parameters of FAW Tyre Module

Order Part NO. Part Name And Standards Oty
315/80R22.5-20PR  Tyre Module
1 3101010-D9860B Wheel and Tyre Assembly 3
2 3106010-D9860B 315/80R22.5 20 Lays Tyre 3
3 3101015A4E 22.5X9.00 Wheel Rim and Spoke  Assembly 11
4 3102010-1H Wheel  Cover Assembly 2
5 3101078-DN53 Wheel Nut Cover 60
6 3103070-Q749 Nut And Gasket Assy 60
7 3101010-D9860C Wheel and Tyre Assembly 8
8 3106010-D9860C 315/80R22.5 20 Lays Tyre 8
9 3105920-D814 Push Plate Assy 1
10 CQ34118 Hexagon Nut 2
11 3105912-DZ660B Fixed Spare Spare Wheel 1
