FAW Truck Braking System

The FAW Truck Braking System is an advanced safety solution for heavy-duty trucks, merging tech and
durability for consistent performance.

What is a FAW Truck Braking System?

  • The FAW Truck Braking System is a high-performance, precision-engineered braking solution designed exclusively for heavy-duty FAW trucks, ensuring maximum stopping power even under extreme loads and challenging road conditions. It integrates advanced hydraulic and mechanical components to deliver responsive, consistent braking, critical for the safety and efficiency of commercial truck operations.
  • Built with durability and reliability in mind, the FAW Truck Braking System undergoes rigorous testing to meet global safety standards, making it a trusted choice for fleet managers and truck operators worldwide. Its adaptive design allows seamless integration with various FAW truck models, providing tailored performance that enhances both driver confidence and operational productivity.
FAW Truck Braking System-Brake Pedal Module Assembly
Brake Pedal Module Assembly

Brake Pedal Module Assembly

  • The Brake Pedal Module Assembly serves as the critical interface between driver input and braking action in FAW trucks, translating foot pressure into precise hydraulic or pneumatic signals. Its ergonomic design ensures comfortable operation even during extended use, while robust mechanical components guarantee consistent responsiveness across varying load conditions.
  • Engineered for durability, the assembly integrates wear-resistant materials and sealed connections to withstand vibration, dust, and moisture in harsh commercial environments. Its modular construction simplifies maintenance, allowing for quick replacement of individual parts without compromising the entire system’s integrity, ensuring minimal downtime for fleet operations.

Cab Air Brake Pipeline Assembly

  • The Cab Air Brake Pipeline Assembly forms the vital network distributing compressed air from the braking system to cab-mounted controls in FAW trucks. Meticulously routed and secured, it minimizes pressure loss and ensures rapid signal transmission, critical for timely brake engagement in emergency scenarios.
  • Constructed with corrosion-resistant tubing and high-performance fittings, the assembly maintains airtight integrity even under extreme temperature fluctuations and mechanical stress. Its compact design optimizes space within the cab while facilitating easy inspection, supporting efficient troubleshooting and upkeep to keep trucks operational.
FAW Truck Braking System- Cab Air Brake Pipeline Assembly
Cab Air Brake Pipeline Assembly

Brake Pipeline Logic Assembly

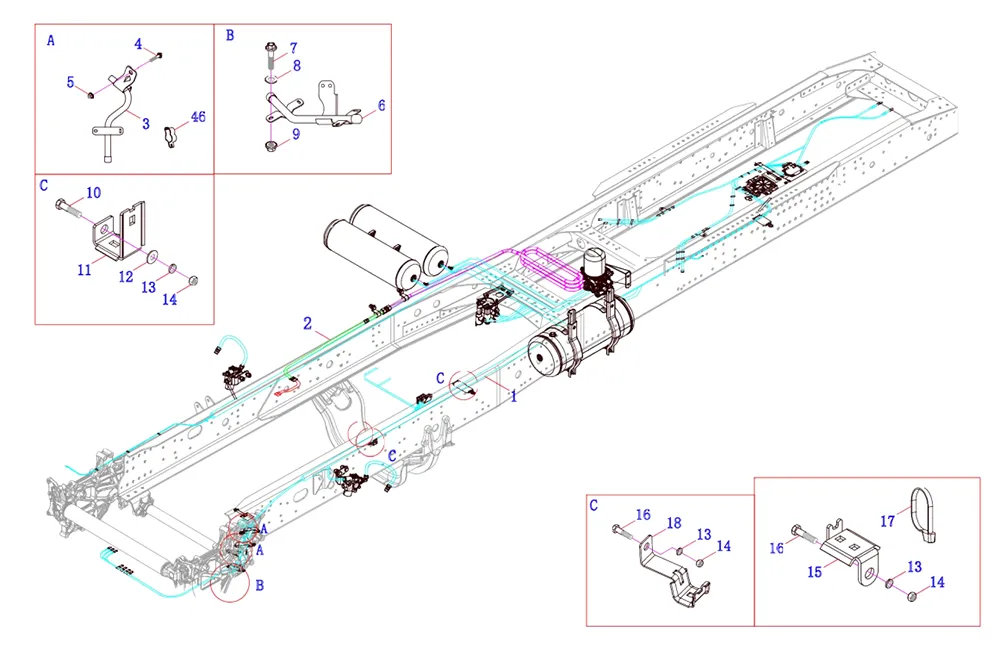

FAW Truck Braking System- Brake Pipeline Logic Assembly-1

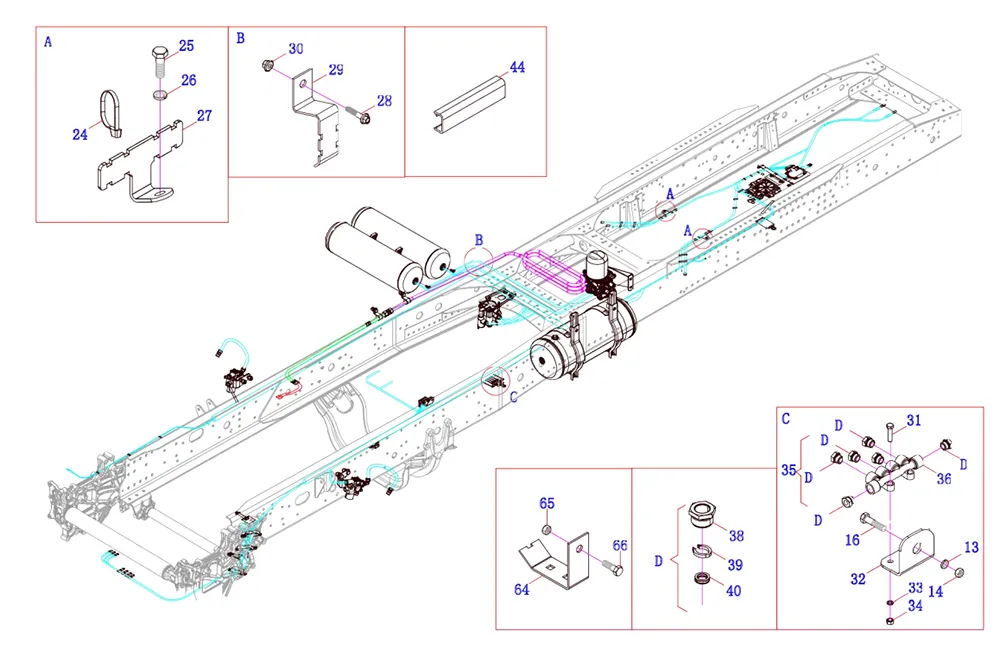

FAW Truck Braking System- Brake Pipeline Logic Assembly-3
FAW Truck Braking System- Brake Pipeline Logic Assembly-2
FAW Truck Braking System- Brake Pipeline Logic Assembly-4
  • The Brake Pipeline Logic Assembly orchestrates pressure distribution across FAW truck braking systems, ensuring balanced force application to all wheels regardless of load or road conditions. Equipped with precision valves and sensors, it dynamically adjusts flow rates to prevent lock-ups and maintain stability during sudden stops.
  • Built to handle high-pressure pneumatic/hydraulic flows, the assembly features rugged housings and redundant safety mechanisms to prevent failures in demanding operations. Its intelligent design integrates seamlessly with vehicle control systems, enabling real-time diagnostics and adaptive braking responses, enhancing both safety and operational efficiency.

Key Components of FAW Truck Braking System

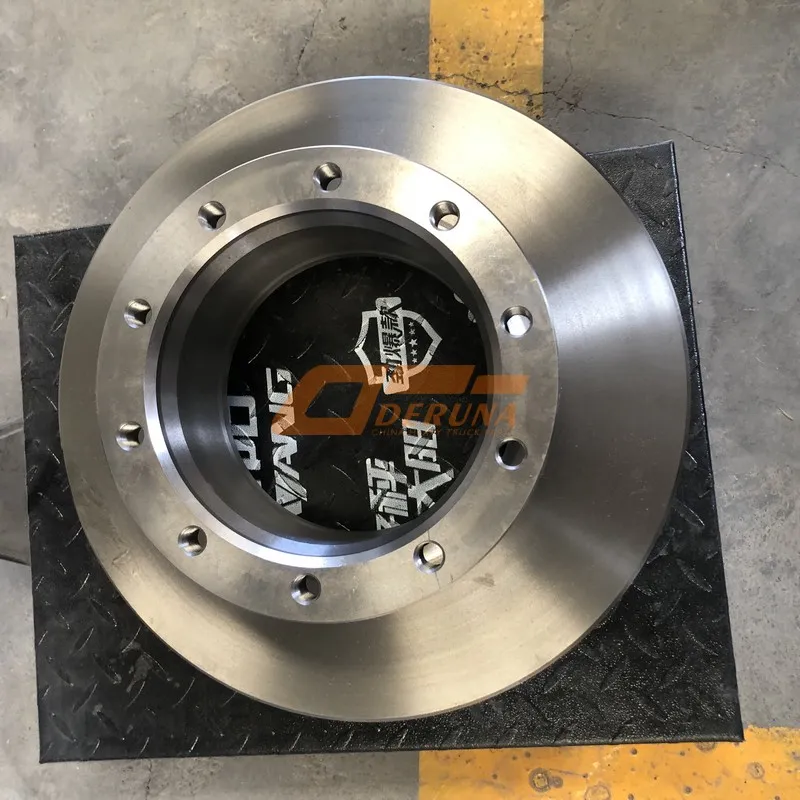

812W508030041 Brake Disc D430 Rear Ventilation Sitrak

Brake Discs

Made from high-grade cast iron, these discs offer exceptional heat resistance and durability, ensuring long-lasting performance in the FAW Truck Braking System. Their precision-machined surface guarantees smooth contact with pads, reducing noise and improving stopping accuracy.
3502375-A6E/A Rear Brake Pads 3250,3310 (2016)

Brake Pads

Formulated with a premium friction material blend, these pads deliver consistent braking force across diverse temperatures, a key feature of the FAW Truck Braking System. They minimize brake fade and extend service life, making them ideal for long-haul applications.
WG 9719230023 Clutch Master Cylinder

Master Cylinder

This critical component efficiently converts driver input into hydraulic pressure, ensuring rapid, reliable response in the FAW Truck Braking System. Its robust, leak-proof construction prevents leaks and maintains pressure stability, even in high-stress scenarios.
3501030-81T/B Brake caliper right FAW J7

Brake Calipers

Designed for optimal clamping force, these calipers distribute pressure evenly across brake pads, a hallmark of the FAW Truck Braking System. Their corrosion-resistant coating ensures reliability in harsh weather and road conditions.
WG9160580501 ABS Slk Brake Control Unit

ABS Control Module

This advanced electronic component prevents wheel lock during sudden braking, enhancing stability and control in the FAW Truck Braking System. It adapts to road surfaces in real time, reducing stopping distances on slippery terrain.

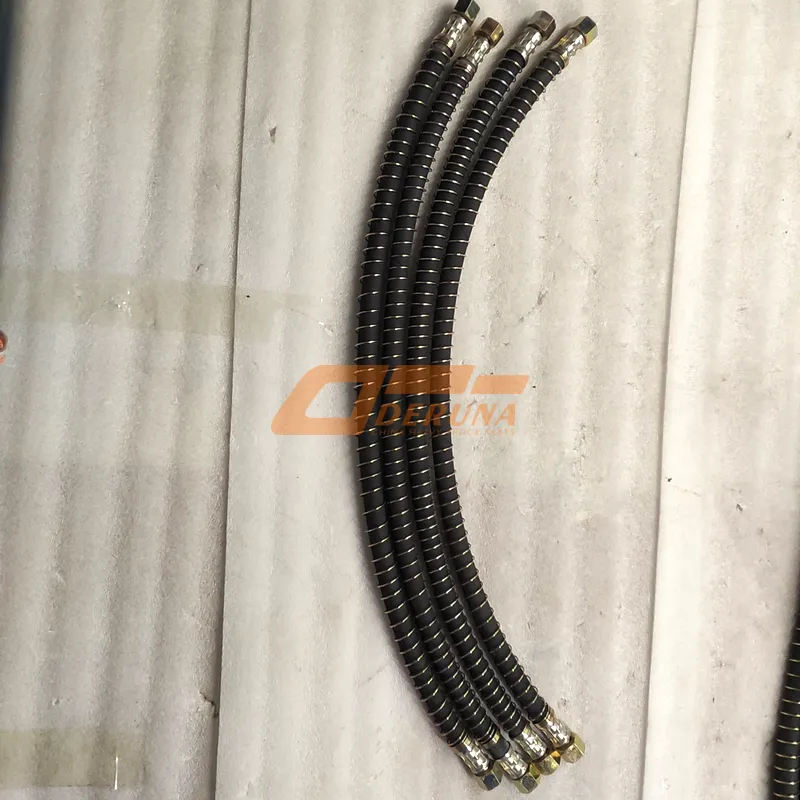

DZ9100360175 Rear Brake Hose L=680Mm F-3000

Brake Hoses

Manufactured from reinforced rubber, these hoses withstand high hydraulic pressure and resist abrasion, a vital attribute of the FAW Truck Braking System. They ensure consistent fluid flow, critical for reliable braking performance.

Benefits of FAW Truck Braking System

The FAW Truck Braking System delivers superior stopping power, reducing accident risks even with heavy payloads, protecting drivers and cargo alike.

Its durable components minimize replacement frequency and maintenance costs, making the FAW Truck Braking System a cost-effective long-term investment.

Designed for consistent performance in extreme conditions, the FAW Truck Braking System minimizes downtime, keeping fleets on the road.

The FAW Truck Braking System meets global safety standards, ensuring operators avoid penalties and maintain compliance with industry regulations.

How Does The FAW Truck Braking System Work?
  1. The driver applies pressure to the brake pedal, which activates the master cylinder in the FAW Truck Braking System, converting mechanical force into hydraulic pressure.
  2. Hydraulic fluid is forced through brake lines to the calipers or wheel cylinders, initiating the braking process in the FAW Truck Braking System.
  3. Calipers clamp down on brake discs (or wheel cylinders push brake shoes against drums), creating friction that slows the truck’s wheels.
  4. The ABS control module in the FAW Truck Braking System monitors wheel speed; if lockup is detected, it modulates pressure to prevent skidding.
  5. As the wheels slow, the truck decelerates, with the system’s design ensuring heat is dissipated efficiently to maintain performance.

Why Choose Our FAW Truck Braking System​?

Quality and Reliability

Our FAW Truck Braking System is built with premium materials and subjected to stringent testing, ensuring it withstands extreme stress and delivers unwavering performance, making it a trusted choice for critical operations.

Extensive Product Range

We offer a comprehensive selection of components for the FAW Truck Braking System, from brake discs to ABS modules, ensuring we meet every need of FAW truck operators and fleet managers.

Excellent After- Sales Service

Our team provides timely support, including installation guidance and maintenance tips for the FAW Truck Braking System, ensuring customers receive ongoing assistance long after purchase.

Applicable Areas Of FAW Truck Braking System

The FAW Truck Braking System is essential for long-haul freight transportation, where reliable stopping power is critical for highway safety. It is also indispensable in construction logistics, where FAW trucks navigate rough terrain with heavy loads. Urban delivery fleets rely on the FAW Truck Braking System for frequent stops in congested areas, valuing its responsiveness. Mining operations depend on the FAW Truck Braking System to handle steep inclines and heavy machinery transport. Additionally, agricultural applications benefit from the FAW Truck Braking System, as it ensures stability when hauling crops and equipment across variable terrain.

faw Tractor Truck

FAW Tractor Truck

faw Cargo Truck

FAW Cargo Truck

faw Dump Truck

FAW Dump Truck

faw Concrete Mixer Truck

FAW Concrete Mixer Truck

faw Special Truck

FAW Special Truck

faw Light Truck

FAW Light Truck
