FAW Solenoid Valve Logic Assembly

FAW Solenoid Valve Logic Assembly
FAW Solenoid Valve Logic Assembly
Download Catalog
Get Quotation

What is the FAW Solenoid Valve Logic Assembly

  • The FAW Solenoid Valve Logic Assembly acts as the electronic brain for precise fluid management in FAW systems. This sophisticated module interprets sensor data and ECU commands, rapidly energizing/de-energizing solenoid coils to control valve actuation with millisecond accuracy. Engineered for FAW-specific applications, it ensures optimal flow control, system efficiency, and diagnostic capabilities in transmission, fuel, or hydraulic circuits under demanding operating conditions.
  • FAW Assembling Bolt: Foundation for Secure Integration
  • The FAW Assembling Bolt provides critical high-strength fastening for mounting the solenoid valve assemblies and brackets to FAW engine blocks or transmission housings. Manufactured to exact FAW tensile specifications, these bolts create vibration-resistant joints that maintain precise component alignment throughout thermal cycling and mechanical stress.
  • FAW Hexagon Nut: Reliable Threaded Retention
  • Working in tandem with bolts, the FAW Hexagon Nut delivers serviceable, torque-stable fastening. Its six-flat design enables precise wrench application during assembly and maintenance, while the FAW-specified plating ensures corrosion resistance. These nuts maintain critical clamping force against vibration in underhood environments.
  • FAW Solenoid Valve Assembly: Core Flow Regulation Unit
  • The FAW Solenoid Valve Assembly directly controls fluid passage through pressurized circuits. This robust unit features precision-machined orifices, wear-resistant seals, and FAW-validated solenoid coils. When energized by the Logic Assembly, it modulates flow with exceptional repeatability for consistent system performance.
  • FAW Solenoid Valve Bracket: Precision Mounting Platform
  • The FAW Solenoid Valve Bracket provides rigid structural support and accurate positioning for solenoid valves within FAW assemblies. Its geometry ensures proper alignment of fluid ports and electrical connectors while isolating sensitive components from excessive vibration and thermal transfer.
  • FAW Cross Recessed Button Head Screw: Low-Profile Component Security
  • The FAW Cross Recessed Button Head Screw secures covers, sensors, and auxiliary components with a flush finish. The recessed Phillips drive allows high-torque installation while the low-profile head prevents snagging on wiring harnesses in confined FAW engine compartments.
  • FAW Solenoid Valve Assembly-With Pipe Connector: Integrated Fluid Interface
  • This specialized FAW Solenoid Valve Assembly-With Pipe Connector features integrated SAE or metric flare/thread ports for direct tube or hose connection. This leak-free integrated design eliminates separate adapters, reducing potential failure points while simplifying installation in FAW fluid circuits.
  • FAW Circlip (Φ 6): Shaft Retention Solution
  • The FAW Circlip (Φ 6) provides secure axial retention for shafts and pins within solenoid assemblies. This 6mm diameter spring steel clip installs effortlessly into machined grooves, preventing component displacement while allowing for straightforward disassembly during FAW service procedures.
  • FAW Special Shaped Seal Ring (Φ 6.5): Precision Fluid Containment
  • The FAW Special Shaped Seal Ring (Φ 6.5) delivers reliable static sealing for 6.5mm diameter shafts or spools. Its custom cross-section (square, X, or D-shaped) provides superior extrusion resistance compared to standard O-rings, ensuring long-term leak prevention in high-pressure FAW valve applications.
  • FAW Threaded Sleeve (M10) With Seal Ring Assy: Sealed Port Integration
  • The FAW Threaded Sleeve (M10) With Seal Ring Assy enables leak-proof sensor or fitting installation in valve bodies. This M10 threaded insert combines a stainless steel sleeve with an integrated fluoroelastomer seal, creating durable, pressure-tight ports resistant to vibration loosening and fluid degradation.
  • FAW Solenoid Valve Assembly: System Integration Focus
  • As the central functional element, the FAW Solenoid Valve Assembly integrates seamlessly with the Logic Controller, fasteners, and sealing components. Its FAW-specific calibration ensures synchronized operation within the vehicle’s broader electronic control network for optimal system responsiveness.

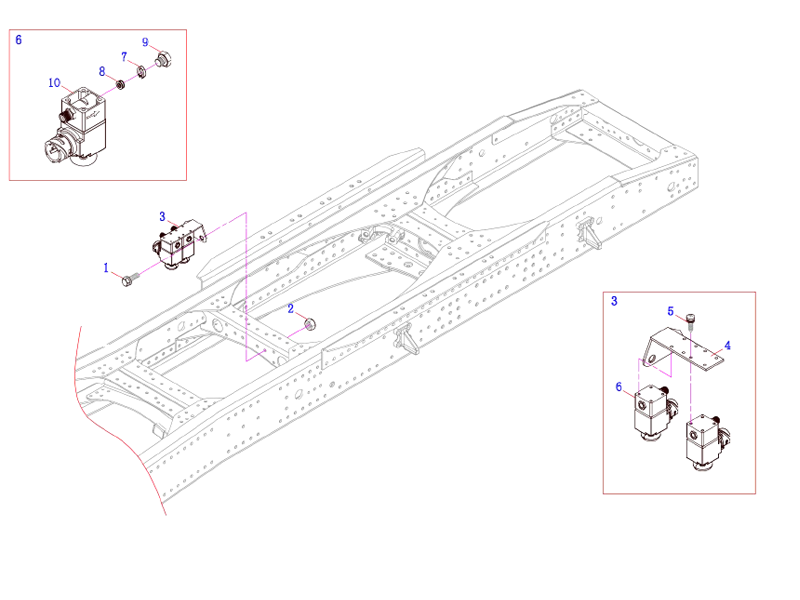

Product Parameters of FAW Solenoid Valve Logic Assembly

Order Part NO. Part Name And Standards Oty
Solenoid  Valve Logic Assembly 1
1 CQ1461230 Assembling Bolt 2
2 CQ34012 Hexagon Nut 2
3 3754010-DY605 Solenoid  Valve Assembly 1
4 3754011-D9801B Solenoid  Vavle Bracket 1
5 Q2320412 Cross Recessed Button Head  Screw 8
6 3754030-1500 Solenoid  Valve Assembly-With Pipe Connector 2
7 3506417-1500 Circlip(Φ 6) 1
8 3506413-1500 Special Shaped Seal Ring(Φ  6.5) 1
9 3506420-1500 Threaded Sleeve (M10) With Seal Ring  Assy 1
10 3754020-1500 Solenoid  Valve Assembly 1
