What is the FAW Roof Interior Trim Module

  • The FAW Roof Interior Trim Module represents a comprehensive, pre-coordinated assembly designed to deliver the final aesthetic finish, functional storage, occupant convenience, and critical NVH (Noise, Vibration, Harshness) control for the vehicle’s headliner area. This module seamlessly integrates multiple panels, hardware, and functional systems for a premium cabin experience.
  • Primary Structure & Finish
  • Top Cover Plate with Small Pads & Top Cover Plate with Big Pads: These key panels form the main visible surface of the headliner. The integrated pads provide essential cushioning, vibration dampening, and contribute significantly to cabin quietness.
  • Top Cover Left Panel Assembly & Top Cover Right Panel Assembly: These side panels provide the finished transition between the main headliner and the vehicle’s pillars, ensuring a seamless and aesthetically pleasing perimeter.
  • Top Cover Middle Protective Plate Assembly – Without a Skylight: This central structural and protective element reinforces the roof structure specifically in non-sunroof configurations, enhancing rigidity and providing a clean mounting base for other components.
  • Buckle-Top Cover Guard Plate: Facilitates secure, tool-less attachment for specific guard plates within the roof structure, simplifying assembly and potential service.
  • Integrated Storage Solutions
  • Top Left Glove Box & Top Right Glove Box: Provide convenient overhead storage compartments for occupants.
  • Top Left Glove Box Panel & Top Right Glove Box Panel: Form the visible access doors and surrounding trim for the overhead glove boxes.
  • Top Left Glove Box Panel Plate: Likely a reinforcing or mounting plate associated with the left glove box assembly.
  • Fastening & Hardware System
  • Robust and secure attachment is ensured through specialized hardware:
  • Cross Recessed Pan Head Tapping Screw: A versatile fastener used extensively throughout the module for reliable metal-to-substrate connections.
  • Cross Recessed Button Head Screw: Used where a lower-profile fastener head is required for clearance or aesthetic reasons.
  • Plastic Screw-Elevated Box & Plastic Nut-Elevated Box: Lightweight, corrosion-resistant fasteners specifically designed for securing components like storage boxes or elevated fixtures within the headliner structure.
  • Large Washer: Used with specific fasteners to distribute clamping load and prevent damage to trim materials.
  • Plug Cover-Interior Handle: Provides a finished, aesthetic cover for the screw head securing the interior handle assembly.
  • Occupant Convenience & Features
  • Interior Handle Assembly: Provides essential grab handles for passenger support and convenience.
  • Front Curtain Rain Steam (Assumed: Front Curtain Assembly): The complete assembly for the retractable sunshade/curtain above the front windshield.
  • F.L Curtain Assembly & F.R Curtain Assembly: Represent the complete retractable sunshade/curtain units for the Front Left and Front Right door windows.
  • Guide Rail for Left Curtain & Guide Rail for Right Curtain: The dedicated track systems enabling smooth operation of the front side window curtains.
  • Guide Rail Connecting Plate: Ensures precise alignment and connection between sections of the curtain guide rail system.
  • Integration Component
  • Block B for Rear Enclosure: While primarily part of the rear enclosure structure, its inclusion here signifies its critical interface point or mounting connection within the roof trim module area, ensuring overall structural cohesion.
  • This meticulously engineered FAW Roof Interior Trim Module exemplifies FAW’s commitment to refined interiors. It combines aesthetic appeal with practical functionality (overhead storage, sunshades), occupant comfort features (grab handles), and advanced NVH control through padded panels and precise sealing. Every component, from the major panels and glove boxes down to the specific Plastic Screw-Elevated Box and Large Washer, is designed for optimal fit, durability, and a seamless, high-quality cabin environment.

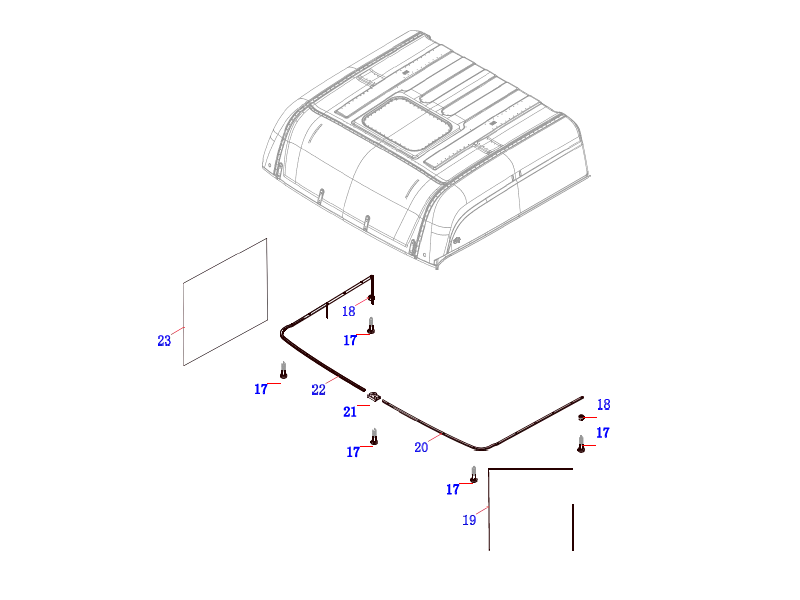

Product Parameters of FAW Roof Interior Trim Module

Order Part NO. Part Name And Standards Oty
Roof Interior Trim Module 1
1 5702033-B83 Top cover plate with small pads 12
2 5702015-B45 Top cover Left panel Assembly 1
3 5702028-B83H Buckle-Top Cover Guard Plate 17
4 5702020-B45 Top cover Right panel Assembly 1
5 5702032-B45 Top cover plate with big pads 2
6 5702010-B83 Top cover Middle Protective Plate Assembly- Without a skylight 1
7 5315023-A95 Plastice Screw-Elevated Box 4
8 5315024-A95 Plastic Nut-Elevated Box 4
9 5702081-B45 Top left glove box 1
10 CQ2714816F6 Cross Recessed Pan Head Tapping Screw 6
11 5702083-B45 Top left glove box panel 1
12 Q2360640B Cross Recessed Button Head Screw 4
13 5702091-B45 Top left glove box panel Plate 2
14 5702130-B45 Interior Handle Assembly 1
15 5702084-B45 Top Right glove box panel 1
16 5702082-B45 Top Right glove box 1
17 CQ2715516F6 Cross Recessed Pan Head Tapping Screw 21
18 5402083-240 Front curtian rain Steam 2
19 5702225-B45 F.L curtian Assembly 1
20 5702061-B45 Guide rail for left curtain 1
21 5702171-A86 Guide Rail Connecting Plate 1
22 5702062-B45 Guide rail for Right curtain 1
23 5702230-B45 F.R curtian Assembly 1
24 5602071-B45 Block B for rear enclosure 4
25 5702133-B45 Plug Cover-Interior Handle 2
26 5702133-E48 Large Washer 4
