What is the FAW Rear Fender Logic Assembly

  • The FAW Rear Fender Logic Assembly represents a sophisticated and modular system designed for robust protection and structural integration within FAW vehicle chassis. It’s engineered for durability, effective mud and splash management, and secure mounting. Here’s a detailed breakdown of its key components and sub-assemblies:
  • 1. Core Structural & Mounting Framework: This assembly relies heavily on specialized high-strength fasteners. Hexagon Flange Bolt Thick Rod (Standard Type) components provide critical clamping force and vibration resistance at major connection points, secured by Hexagon Flange Lock Nut and Hexagon Flange Nut elements. Additional security comes from Hexagon Head Bolt and Hexagon Flange Bolt fasteners, often paired with Plain Washer A or Large Washer to distribute load. Specific fixtures like the Cross Recessed Pan Head Tapping Screw and the unique Hexagon Lobular Socket Countersunk Head Screw are employed for panel attachment and flush finishing. Pre-assembled units like the Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly streamline installation.
  • 2. Intermediate Axle Fender System (Front): Protection for the mid-section of the chassis starts here. The Intermediate Axle Front Fender forms the base shield. This integrates into complete Intermediate Axle Left Front Fender Assembly and Intermediate Axle Right Front Fender Assembly units. For enhanced support and mounting, these connect to the Intermediate Axle Left Front Fender And Bracket Assembly and Intermediate Axle Right Front Fender And Bracket Assembly, utilizing struts (Intermediate Axle Rear Fender Strut Assembly) and dedicated Intermediate Axle Rear Fender Strut Bracket components. The Upper Cover Plate offers additional coverage, while the Rubber Connecting Pull Belt ensures flexible, secure linking between sections.
  • 3. Intermediate Axle Fender System (Rear): Mirroring the front but designed for the rearward section of the intermediate axle, this includes the Intermediate Axle Rear Fender Assembly. It comprises dedicated left and right sections: the Intermediate Axle Left Rear Fender Assembly (and related Intermediate Axle Left Rear Fender And Bracket Assembly) and the Intermediate Axle Right Rear Fender Assembly (along with Intermediate Axle Right Rear Fender And Bracket Assembly and Intermediate Axle Right Fender Assembly). These assemblies utilize the same robust strut system (Intermediate Axle Rear Fender Strut Assembly) and bracket for stability.
  • 4. Rear Axle Fender System: Providing critical protection for the drive axle, this system features distinct left and right assemblies. The Rear Axle Left Rear Fender And Bracket Assembly supports the Rear Axle Left Rear Fender Assembly and the specific Rear Axle Left Rear Fender panel. Similarly, the Rear Axle Right Rear Fender And Bracket Assembly supports the Rear Axle Right Rear Fender Assembly and the Rear Axle Right Rear Fender panel. Dedicated Rear Axle Rear Fender Strut Assembly components (used on both left and right sides) provide essential vertical support and mounting rigidity for these assemblies.
  • 5. Enhanced Protection & Sealing Features: The system incorporates elements specifically for environmental defense. Rainproof Curtain components are strategically placed (associated with both Left and Right Rear Axle Fenders) to prevent water ingress into sensitive areas. Below, the Splash Guard and Splash Guard Down panels work in tandem to effectively deflect road spray, mud, and debris away from the chassis and driveline components. Plug Cover elements seal unused access points.
  • 6. Support & Clamping Hardware: Specific localized support is provided by Clamp Front Support and Clamp Back Support elements, likely used to secure lines or cables routed near the fender assemblies, contributing to the overall “logic” of the layout.

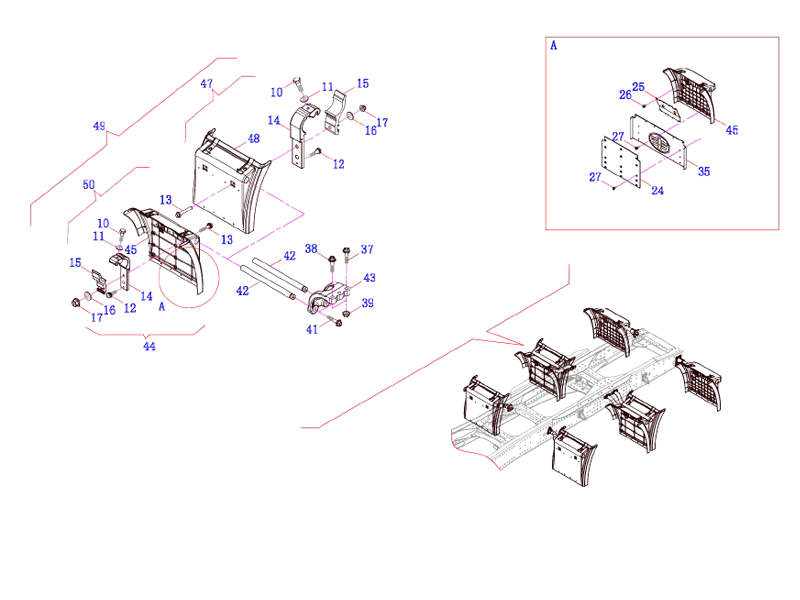

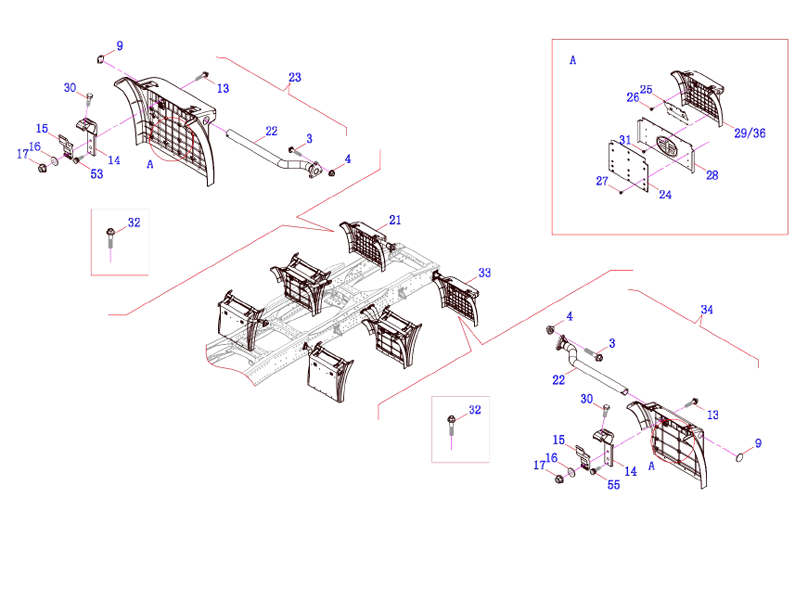

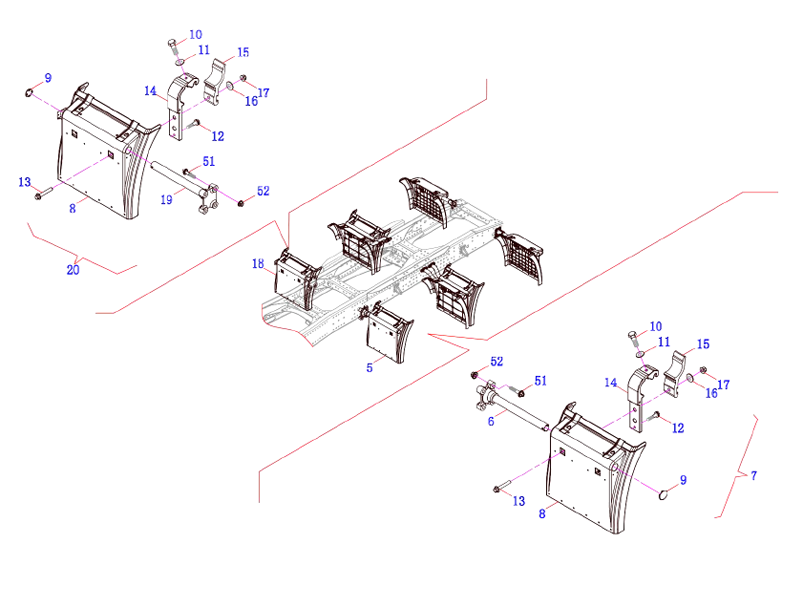

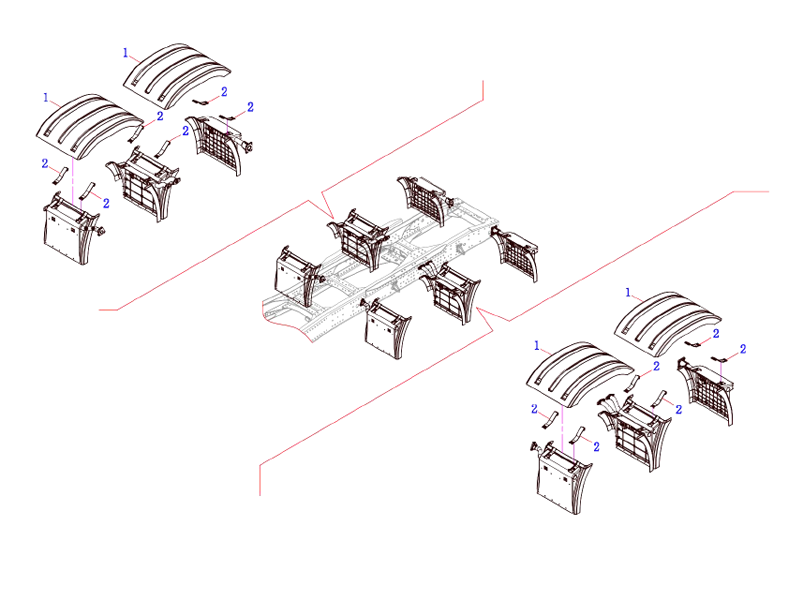

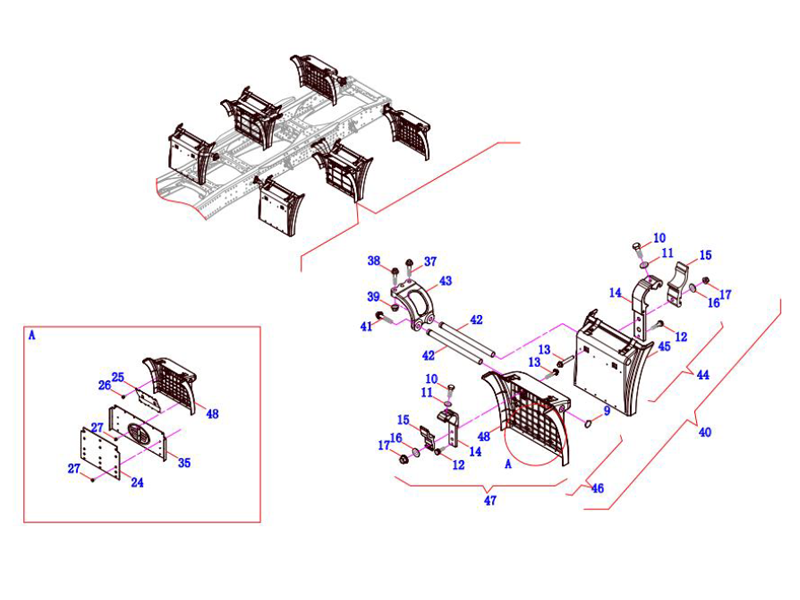

Product Parameters of FAW Rear Fender Logic Assembly

Order Part NO. Part Name And Standards Oty
    Rear Fender Logic Assembly 1
1 8404016-2000 Upper Cover Plate 4
2 8404017-91W Rubber Connecting Pull Belt 16
3 Q1841245T Hexagon Flange Bolt Thick Rod (Standard Type) 4
4 CQ32612 Hexagon Flange Lock Nut 8
5 8404025-DY112 Intermediate Axle Left Front Fender And Bracket Assembly 1
6 8404155-DY112 Rear Axle Rear Fender Strut Assembly 1
7 8404225-2000 Intermediate Axle Left Front Fender Assembly 1
8 8404011-2000 Intermediate Axle Front Fender 2
9 8404024-91W Plug Cover 4
10 CQ1500630 Hexagon Head Bolt 12
11 CQ40106 Plain Washer A 12
12 CQ2205522 Cross Recessed Pan Head Tapping Screw and 12
13 8404023-2000 Hexagon Head Bolt 32
14 8404022-91W Clamp back support 16
15 8404021-91W Clamp front support 16
16 Q40208 Large Washer 16
17 CQ39608 Hexagon Flange Nut 16
18 8404030-DY112 Intermediate Axle Right Front Fender And Bracket Assembly 1
19 8404155-DY112 Rear Axle Rear Fender Strut Assembly 1
20 8404230-2000 Intermediate Axle Right Front Fender Assembly 1
21 8404060-DY682 Rear Axle Right Rear Fender And Bracket Assembly 1
22 8404155-91W Rear Axle Rear Fender Strut Assembly 2
23 8404250-DY682 Rear Axle Right Rear Fender Assembly 1
28 8404117-DY682 Rainproof Curtain 2
29 8404018-2040 Rear Axle Right Rear Fender 1
30 Q1840640 Hexagon Flange Bolt Thick Rod (Standard Type) 4
31 CQ2245516F41 Hexagon Lobular Socket Countersunk Head Screw 12
53 CQ2724822 Cross Recessed Pan Head Tapping Screw 4
24 8404112-91W Splash Guard Down 2
25 8404211-91W Splash Guard 2
26 CQ2204822 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly 8
27 CQ2204813 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly 56
32 Q1841240T Hexagon Flange Bolt Thick Rod (Standard Type) 4
33 8404055-DY682 Rear Axle Left Rear Fender Strut Assembly 1
34 8404245-DY682 Rear Axle Left Rear Fender Assembly 1
35 8404117A91W Rainproof Curtain 2
36 8404012-2040 Rear Axle Left Rear Fender 1
37 2701011-DY679 Hexagon Flange Bolt 4
38 Q1841670T Hexagon Flange Bolt Thick Rod (Standard Type) 2
39 CQ32616 Hexagon Flange Lock Nut 6
40 8404035-1554 Intermediate Axle Left Rear Fender And Bracket Assembly 1
41 Q1841850T Hexagon Flange Bolt Thick Rod (Standard Type) 4
42 8404135-2008 Intermediate Axle Rear Fender Strut Assembly 4
43 8404034-1554 Intermediate Axle Rear Fender Strut Bracket 2
44 8404240-2000 Intermediate Axle Right Rear Fender Assembly 2
45 8404014-2000 Intermediate Axle Right Fender Assembly 2
46 8404235B91W Intermediate Axle Left Rear Fender Assembly 1
47 8404235-2000 Intermediate Axle Left Rear Fender Assembly 1
48 8404013-2000 Intermediate Axle Rear Fender Assembly 1
49 8404040-1554 Intermediate Axle Right Rear Fender And Bracket Assembly 1
50 8404240B91W Intermediate Axle Right Rear Fender Assembly 1
51 Q1841460T Hexagon Flange Bolt Thick Rod (Standard Type) 4
52 CQ32614 Hexagon Flange Lock Nut 4
