What is the FAW Intercooler Pipeline And Bracket Module

  • 1. Optimized Charge Air Cooling: FAW WP13.550E501 Module
    The FAW Intercooler Pipeline and Bracket Module is a precision-engineered subsystem critical for maximizing combustion efficiency in the WP13.550E501 engine. This assembly routes pressurized, turbocharged air through the intercooler—reducing intake air temperature to increase density—before delivering it to the intake manifold. The result? Higher oxygen content for combustion, improved fuel economy, and reduced emissions.
  • 2. Robust Air Transfer Pathways
  • Air Inlet Corrugated Connecting Pipe Assembly: Channels hot, compressed air from the turbocharger to the intercooler core. Its corrugated design allows controlled flexing to absorb engine vibrations and thermal expansion.
  • Intercooler Air Outlet Corrugated Connecting Pipe Assembly: Transfers cooled, dense air from the intercooler outlet to the engine’s intake manifold. Corrugations ensure durability under pressure fluctuations while maintaining optimal airflow geometry.
  • 3. Leak-Proof Sealing Technology
    Critical junctions are secured with Worm Drive Type Hose Clamp assemblies at both the inlet and outlet connections. These adjustable clamps:
  • Provide uniform circumferential pressure for 100% seal integrity under high boost (20+ PSI).
  • Resist loosening from vibration using their threaded worm gear design.
  • Prevent costly boost leaks that compromise power and efficiency.
  • 4. Structural Integrity & Mounting
    Though specific brackets aren’t listed, the “Bracket Module” designation implies a dedicated framework featuring:
  • Laser-cut steel or aluminum brackets that rigidly mount pipes to the chassis/engine block.
  • Vibration-dampening bushings isolating pipes from engine harmonics.
  • Heat shields protecting pipes from exhaust manifold radiant heat.
  • Engineered alignment ensuring zero stress on intercooler connections.
  • 5. System-Wide Performance Synergy
    Every component—the corrugated Air Inlet and Outlet Pipe Assemblies, dual Worm Drive Type Hose Clamps, and integrated bracket system—works cohesively. This FAW module ensures consistent charge air cooling, sustained boost pressure, and peak thermal efficiency for the WP13.550E501 under extreme operating conditions.

Product Parameters of FAW Intercooler Pipeline And Bracket Module

Order Part NO. Part Name And Standards Oty

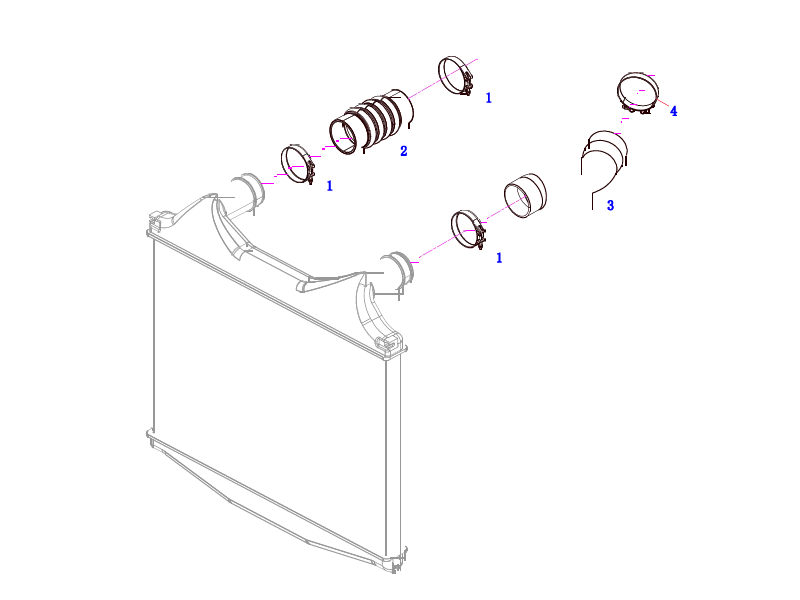

Intercooler  Pipeline and Bracket Module
1 CQ679100 Worm Drive Type Hose Clamp 3
2 1119050-50A Air Inlet  Corrugated Connecting Pipe Assembly 1
3 1119060-DY604 Intercooler Air Outlet  Corrugated Connecting Pipe Assembl 1
4 CQ679110 Worm Drive Type Hose Clamp 1
