What is the FAW Instrument Panel Assembly

  • The FAW Instrument Panel Assembly is the command center and structural hub of the FAW truck cab interior. This highly integrated system combines critical driver information displays, HVAC controls, extensive storage solutions, structural support, and refined aesthetics into a single, logically engineered unit. Designed for ergonomics, durability, and driver comfort in demanding commercial vehicle operations.
  • Core Structure & Framework
  • Instrument Panel Body Welding Assembly: The primary welded steel skeleton providing foundational rigidity, crash protection, and mounting points for all subsystems.
  • Instrument Panel Body: The main structural substrate, often composite, forming the base shape.
  • Central Instrument Panel Fixing Bracket, LH/RH Side Fixing Bracket Assy, Central LH/RH Side Fixing Bracket, Reinforced Bracket – Middle Cross Member, Right Lower Cross Member Assy, LH/RH Side Connecting Bracket, Central Connecting Bracket, Upper Fixing Plate Assy: A network of precisely engineered metal brackets providing critical structural reinforcement, vibration resistance, and secure mounting for the panel itself to the cab structure and for internal components (HVAC, steering column, storage units).
  • HVAC Integration & Defrosting
  • Front End Defrost Air Duct: Channels warm air directly onto the windshield to prevent fogging and ice buildup.
  • Right/Left Side Front Defroster Grille (一 & 二), Middle Front Defroster Grilling: Strategically positioned outlet grilles distributing defrost air evenly across the windshield base.
  • Right/Middle Right Side/Left/Middle Left Side/Center Console Panel Grilling Assembly: Air outlet grilles for cabin ventilation and temperature control.
  • Maintenance Cover Plate-Air Conditioner Motor: Access panel for servicing the HVAC blower motor.
  • Air Conditioner Decorative Panel Assembly: Aesthetic trim integrating HVAC controls and vents.
  • Driver Interface & Controls
  • Instrument Cover Assembly: Housing and bezel for the primary gauge cluster (speedometer, tachometer, warning lights).
  • Middle Lower Control Panel Assembly & Middle Lower Control Panel: Central location for switches, controls (e.g., lighting, differential lock), and potentially auxiliary displays.
  • Front/Rear Steering Pillar Decoration Cover & Middle Rubber Sleeve-Steering Pillar with Upper/Lower Connecting Bar: Trim elements surrounding the steering column, enhancing aesthetics and potentially housing wiring. The rubber sleeve dampens vibrations.
  • Storage & Utility Compartments
  • Upper Glove Box: Primary lockable storage compartment in front of the passenger.
  • Center Console Panel Assy & Center Console Panel: Central structure often housing cup holders, switches, and additional storage.
  • Cup Holder Mat & Store Up Box Mat -Middle put Stuff Platform: Non-slip, removable liners for storage bins.
  • Decorative Cover Assembly-Middle put Stuff Platform & Decorative Cover -Middle put Stuff Platform: Trim panels for the central storage/utility area.
  • Lower Drawer Box Assy & Lower Drawer Box: Pull-out storage drawer(s) beneath the center stack.
  • Middle Cover Plate-Lower Drawer & Decotation Cover Plate-Lower Drawer: Drawer front panels and trim.
  • The Slide Assembly & Limiting Device-Drawer: Hardware enabling smooth drawer operation and preventing over-extension.
  • Ashtray Assembly: Designated receptacle (or convertible storage bin).
  • Aesthetic Trims & Decorative Elements
  • Decorative Cover Assembly- LH/RH Side Instrument Panel & Decorative Cover – LH Side Instrument Panel: Primary trim panels on the driver and passenger sides, defining the visual surface.
  • Blind Plate of Middle/Front Instrument Panel & Blind Plate-Lower Guard Board (Lh): Cover plates for unused switch holes or service ports.
  • Middle Upper Guard Plate, Middle Lower Protective Plate Assy, Middle Lower Guard Board: Protective and aesthetic trim pieces.
  • Brake Pedal Decoration Plate-LH Lower Protective Plate & Clutch Pedal Decoration Plate-LH Lower Protective Plate: Trim panels around the pedal bases.
  • RH/LH side Maintenance Cover Plate Assembly & RH side Maintenance Cover Plate: Access panels for fuse boxes or wiring behind trim.
  • Protective Elements & Lower Guards
  • Left-Low Protect Panel Assy & Lower Guard Board (Lh): Protective panels shielding the lower driver’s side area from foot scuffs and dirt.
  • Right Lower Guard Board & Lower Guard Board (Rh): Protective panels for the lower passenger side area.
  • Left/Right Baffle: Vertical or angled panels guiding airflow or concealing components.
  • Critical Mounting Hardware & Fasteners
  • Spring Nut & Spring Nut-Instrument Panel: Self-clinching nuts providing threaded anchors in sheet metal or plastic substrates.
  • Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly: Versatile screws for attaching trim, covers, and brackets, creating their own thread.
  • Cross Recessed Button Head Screw: Low-profile screws for visible areas requiring a clean finish.
  • Plastic Clip & Inserting Joint: Snap-fit fasteners for quick assembly of trim panels.
  • Rubber Cushion-Instrument Panel: Vibration dampeners and spacers between components.
  • Multi-thread Wide Series “U”-Nut: Clip nuts for easy assembly onto brackets or panels.
  • Plastic Nut: Corrosion-resistant nuts for lighter-duty connections.
  • Fixing Bracket: General term for mounting supports secured by the above hardware.
  • This meticulously designed assembly integrates structural integrity, essential driver controls, sophisticated HVAC management, practical storage, and refined aesthetics, defining the functional and ergonomic heart of the FAW truck cab interior.

Product Parameters of FAW Instrument Panel Assembly

Order Part NO. Part Name And Standards Oty

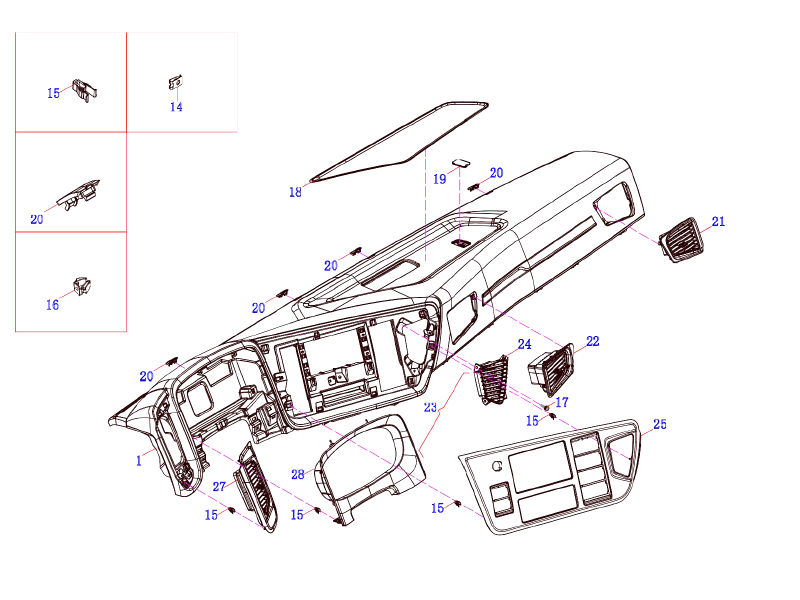

Instrument  Panel Assembly 1
1 5310010AB45 Instrument Panel Assy 1
2 5310030-B45 Instrument Panel Body  Welding Assembly 1
3 5310032-B45 Front End Defrost Air Duct 1
4 5310031-B45 Instrument Panel Body 1
5 5310072-B45 Right Side Front Defroster Grille（二） 1
6 5310042-B45 Right Side Front Defroster Grille（一） 1
7 5310043-B45 Middle Front  Defroster Grilling 1
8 5310041-B45 Left Side Front Defroster Grille（一） 1
9 5310071-B45 Left Side Front Defroster Grille（二） 1
10 5310048-B45 Maintenance Cover  Plate-Air Conditioner Motor 1
11 5310134-B45 Brake Pedal Decoration Plate-LH  Lower Protective Plate 1
12 5310035-B45 Decorative Cover Assembly- LH Side Instrument Panel 1
13 5310036-B45 Decorative Cover – LH Side Instrument  Panel 1
14 5305024-A01 Spring Nut 14
15 5310049-B45 Plastic Clip 40
16 5310033-A01 Spring  Nut-Instrument Panel 35
17 CQ2214216F6 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly 118
18 5310047-B45 Rubber  Cushion-Instrument Panel 1
19 5310046-B45 Blind Plate of Middle Instrument  Panel 1
20 5310044-B45 Blind Plate of Front Instrument  Panel 4
21 5310075-B83H Right  Grilling Assembly 1
22 5310070-B83H Middle Right Side Grilling  Assembly 1
23 5310060AB83H Center Console Panel Assy 1
24 5310065-B83H Middle Left Side Grilling  Assembly 1
25 5310061AB83H Center  Console Panel 1
26 5704249-B45 Air Deflector Hinge Gasket 1
27 5310055-B83H Left  Grilling Assembly 1
28 5310050-B45 Instrument  Cover Assembly 1
29 5310130-B83 Left-Low Protect Panel Assy 1
30 Q2360830 Lower Guard Board (Lh) 1
30 5310131-B83 Blind Plate-Lower Guard Board  (Lh) 4
31 5310132-B45 Air Conditioner Decorative Panel  Assembly 1
32 5310105-B45 Ashtray Assembly 1
33 8203010-B45-C00 Cross Recessed Button Head Screw 4

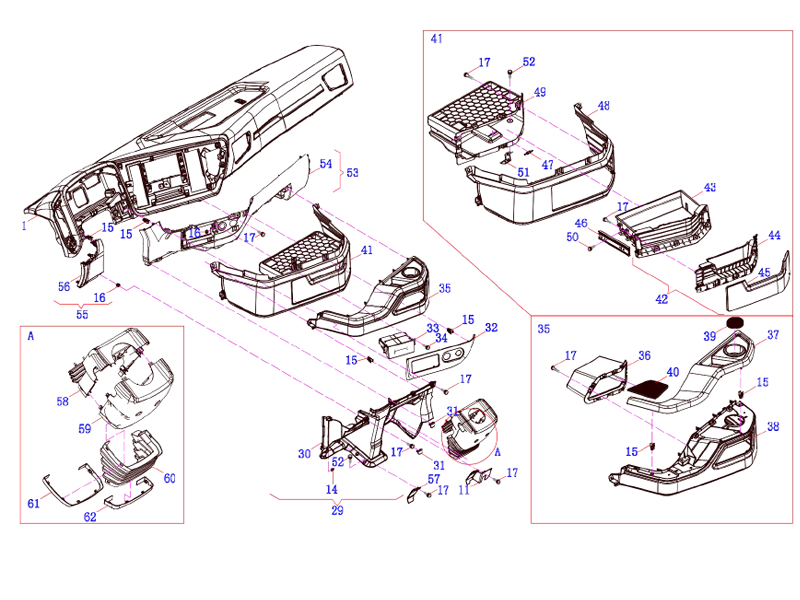

34 Q2360516F6 Decorative Cover Assembly-Middle put Stuff Platform 1
35 5310120-B45 Upper Glove Box 1
36 5310126-B45 Decorative Cover -Middle put Stuff  Platform 1
37 5310121-B45 Middle Upper Guard Plate 1
38 5310122-B45 Cup Holder Mat -Middle put Stuff  Platform 1
39 5310124-B45 Store Up Box Mat -Middle put Stuff  Platform 1
40 5310123-B45 Middle Lower Protective Plate  Assy 1
41 5310140-B45 Lower Drawer Box Assy 1
42 5310160-B45 Lower Drawer Box 1
43 5310161-B45 Middle Cover Plate-Lower Drawer 1
44 5310163-B45 Decotation Cover Plate-Lower  Drawer 1
45 5310162-B45 The Slide Assembly 1
46 5310165-B45-C00 Limiting Device-Drawer 1
47 5310164-B45 Middle Lower Guard Board 1
48 5310141-B45 Fixing  Bracket-Lower Drawer 1
49 5310166-B45 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly 7
50 CQ2214213AF6 Fixing Bracket 2
51 5310545-B45 Cross Recessed Button Head Screw 22
52 Q2360620F6 Middle Lower Control Panel  Assembly 1
53 5310100-B45 Middle Lower Control Panel 1
54 5310101-B45 Left-Middle Protect Panel Assy 1
55 5310090-B45 Left-Middle  Protect Panel 1
56 5310091-B45 Clutch Pedal Decoration Plate-LH Lower Protective Plate 1
57 5310133-B45 Front  Steering Pillar  Decoration Cover Assembly 1
58 5310510AB83 Rear Steering Pillar Decoration  Cover 1
59 5310521AB83 Middle Rubber  Sleeve-Steering Pillar 1
60 5310551-B83 Upper Connecting Bar – Middle Rubber  Sleeve 1
61 5310552-B83 Lower Connecting Bar – Middle Rubber  Sleeve 1
62 5310553-B83 RH side Maintenance Cover  Plate Assembly 1
63 5310110-B45 Inserting Joint 1
64 5310173-B45 RH side Maintenance Cover Plate 8
65 5310111-B45 Lower Guard Board (Rh) 1
66 5310170-B45 Right Lower Guard Board 1
67 5310171-B45 Connecting Seat 1
68 5310172-B45 LH side Fixing Backet Assy 1
69 5310310-B45 Multi-thread Wide Series “U”-Nut 1
70 CQ31208145 Left Baffle 2
71 5310321-B45 LH Side Fixing Backet 1
72 5310311-B45 Upper Fixing Plate Assy 1
73 5310325-B45 RH Side Fixing Backet Assy 2
74 5310360-B45 Right Side Fixing Backet 1
75 5310361-B45 Right Baffle 1
76 5310371-B45 Cross Recessed Button Head Screw 1
77 Q2360820F6 Cross Recessed Button Head Screw 12

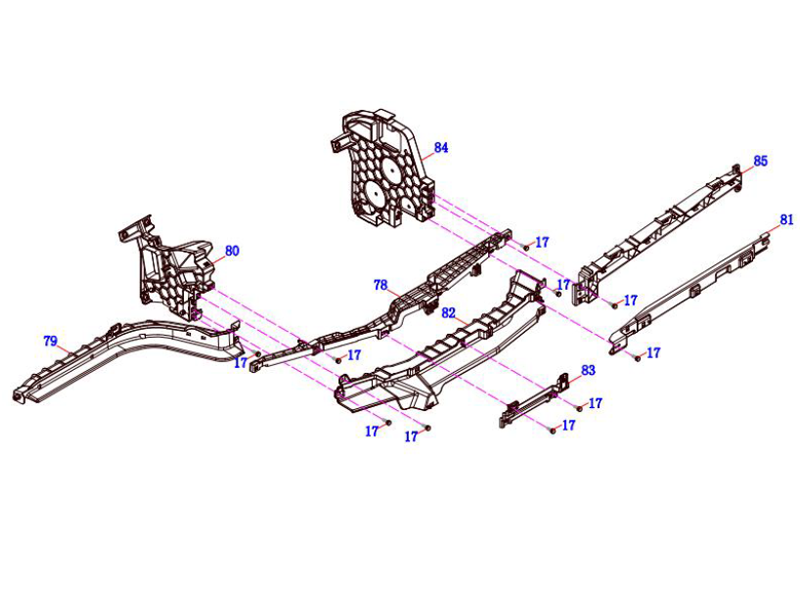

78 5310440-B45 Central Instrument  Panel Fixing Backet 1
79 5310411-B45 LH Side Connecting Bracket 1
80 5310330-B45 Central LH Side Fixing Backet 1
81 5310450-B45 Right Lower Cross Member Assy-Lower  Guard Board (Right) 1
82 5310420-B45 Central  Connecting Bracket 1
83 5310442-B45 Reinforced Bracket  – Middle Cross Member 1
84 5310350-B45 Central RH Side Fixing Backet 1
85 5310430-B45 RH Side Connecting Bracket 1
