FAW Front Axle Assembly -Front Axle  Assembly

FAW Front Axle Assembly -Front Axle  Assembly
FAW Front Axle Assembly -Front Axle  Assembly

What is the FAW Front Axle Assembly -Front Axle  Assembly

  • The FAW Front Axle Assembly, segmented by functional groups and incorporating all specified components:
  • 1. FAW Front Axle Assembly: Heavy-Duty Steering & Load Hub
    The FAW Front Axle Assembly serves as the foundational steering pivot and load-bearing beam for FAW commercial trucks. This robust Front Axle integrates steering kinematics, wheel mounting, and braking systems, engineered for precise maneuverability under extreme payloads and harsh operating conditions.
  • 2. Steering Knuckle System: Wheel Pivot & Control
  • Core Components: Right Steering Knuckle And Bushing Assy (incorporating Right Knuckle) and Left Steering Knuckle And Bushing Assy (incorporating Left Knuckle) form the wheel carriers.
  • Bearing & Arm Mounting: Pull Conical Roller Bearings handle vertical loads within the knuckle. Steering forces are transmitted via the Right Steering Knuckle ArmLeft Steering Knuckle Arm, and Steering Knuckle Upper Arm, secured with Hexagon Head BoltsSpring Washers, and Hexagon Nuts for vibration resistance.
  • Alignment: Adjusting Washer Of Steering Knuckle fine-tunes knuckle positioning relative to the axle beam.
  • 3. Kingpin Assembly: The Steering Axis
  • Pivot Core: The Kingpin – Knuckle provides the hardened vertical pivot axis, rotating within precision Bush -Steering Knuckle sleeves.
  • Sealing & Retention: The Oil Seal Assy-Kingpin prevents lubricant leakage, while the Cuneiform Lock Dowel-Steering King Pin positively locks the kingpin against rotation. The Cover Plate-Steering Knuckle Kingpin Hole and Rubber sealing O ring seal the assembly.
  • Lubrication: A Grease Nozzle enables periodic maintenance injection.
  • 4. Wheel End & Sensing Integration
  • Hub Assembly: The Wheel Hub Assembly mounts directly to the knuckle, housing wheel bearings and providing the wheel mounting flange.
  • Brake & ABS Integration: The Sensor Block Brake Assy Of Front Wheel interfaces with the Wheel Speed Sensor Assembly via the Sensor Sleeve, enabling Anti-lock Braking System (ABS) functionality.
  • 5. Linkage & Fastening
  • Steering Linkage: The Steering Tie Rod Assy connects the left and right knuckle arms, synchronizing wheel turn angles.
  • Structural Connections: Assembling Bolts secure covers and ancillary components. The Only Column – Knuckle likely refers to the knuckle’s steering arm attachment boss.

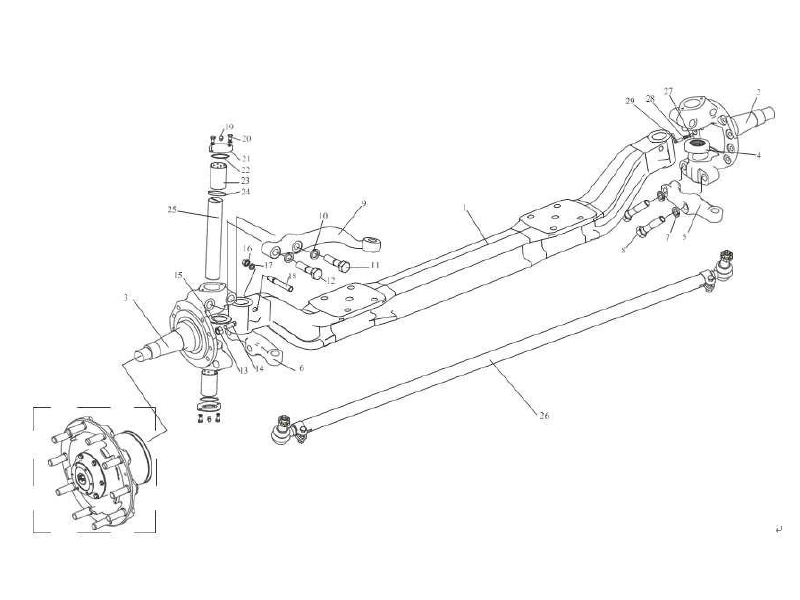

Product Parameters of FAW Front Axle Assembly -Front Axle  Assembly

Order Part NO. Part Name And Standards Oty
3000010G1705 Front  Axle Assembly 1
3000010G1705 Front  Axle Assembly 1
1 3001011-242/D Front Axle 1
2 3001020-1066/B Right Steering Knuckle And Bushing  Assy 1
3001022-1066/B Right Knuckle 1
3 3001015-1066/B Left Steering Knuckle And Bushing  Assy 1
3001021-1066/B Left Knuckle 1
4 3001040-14B-C00/A Pull  Conical Roller Bearing 2
5 3001032-1050/B Right Steering Knuckle Arm 1
6 3001031-1050/B Left Steering Knuckle Arm 1
7 Q40322 Spring Washer 4
8 CQ1512290T Hexagon Head Bolt 4
9 3001034-90R/B Steering Knuckle Upper Arm 1
10 Q40322 Spring Washer 2
11 CQ15122100T Hexagon Head Bolt 1
12 CQ1512280T Hexagon Head Bolt 1
13 CQ34116 Hexagon Nut 2
14 3001036-A0S Only Column – Knuckle 2
15 3001041-4E Adjusting  Washer Of Steering Knuckle On demand
16 CQ34014 Hexagon Nut 2
17 Q40314 Spring Washer 2
18 3001046-4E/B Cuneiform Lock Dowel-Steering King  Pin 2
19 CQ70190 Grease Nozzle 4
20 CQ1420820 Assembling Bolt 8
21 3001047-A3S/F Cover  Plate-Steering Knuckle Kingpin Hole 4
22 Q7343165B Rubber sealing O ring 4
23 3001026AA8S/A Bush  -Steering Knuckle 4
24 3001050-428/A Oil Seal Assy-Kingpin 4
25 3001044-4E/C Kingpin – Knuckle 2
26 3003050-1050-C00/A Steering Tie Rod Assy 1
27 3550111B1H Sensor Block Brake Assy Of Front  Wheel 2
28 3550361-6S Sensor Sleeve 2
29 3550360-6S Wheel  Speed Sensor Assembly 2
3103010B1H Wheel Hub Assembly 2
