What is the FAW Frame Logic Assembly

  • 1. FAW Frame Logic Assembly: The Chassis Backbone
    The FAW Frame Logic Assembly forms the primary structural foundation for heavy-duty FAW trucks. This meticulously engineered ladder frame system, comprising interconnected Longitudinal Member Assemblies and strategically placed cross-members, distributes immense payload and dynamic stresses, ensuring chassis rigidity, stability, and longevity under extreme operating conditions.
  • 2. Longitudinal Beam Structure: Core Load Paths
  • Left/Right Longitudinal Member Assy: The main load-bearing rails, featuring the Left Rail and Right Rail as primary extrusions.
  • Reinforcement: Enhanced by Inner Reinforcing Plate Of Left Longitudinal Beam and Inner Reinforcing Plate Of Right Longitudinal Beam, significantly boosting bending and torsional resistance.
  • Front Extensions: Frame Left Front Add Long Beam and Frame Right Front Add Long Beam extend the frame rails forward for specific configurations, secured with Hexagon Flange Bolt Thick Rod (Standard Type) and SPL Small Hexagon Flange Lock Nut.
  • 3. Cross-Member Network: Transverse Stability & Component Mounting
  • Front Section: The Front Cross Member Assy provides crucial front-end rigidity. Right Front Spring Front Bracket Cross Member Welding Assembly, Left Front Bracket-Front Leaf Spring, and Right Front Bracket-Front Leaf Spring integrate spring hangers. Mounting uses Hexagon Flange Bolt Thick Rod (Standard Type) and SPL Small Hexagon Flange Lock Nut.
  • Center Section: Middle 1# Cross-Member Riveting Assembly and Middle Cross Member bridge the frame center. Connection involves Middle Cross Member Left/Right Upper/Lower Connecting Boards and Round Head Rivets for permanent, high-shear strength joints.
  • Rear Section: The Rear Cross Member handles rear axle loads. It interfaces via Rear Cross Member LH/RH Upper Connection Plates and Rear Cross Member Left/Right Lower Connecting Plates, utilizing Hexagon Flange Lock Nuts, Hexagon Flange Bolt Thick Rod (Standard Type), and Round Head Rivets.
  • 4. Balance Suspension Integration: Multi-Axle Load Distribution
  • Core Component: The Balance Suspension Cross Beam Assy, centered around the Balance Suspension Cross Beam.
  • Connection: Linked to the frame via Upper Connecting Board-Balance Suspension Cross Beam Assy, Lower Connecting Plate, Left Connecting Plate-Balance Suspension Cross Beam Assy, Left/Right Brackets, and Reinforced Plates.
  • Fastening: Employs Hexagon Flange Bolt Thick Rod (Standard Type), SPL Small Hexagon Flange Lock Nut, Hexagon Flange Lock Nut, and Round Head Rivets for robust, vibration-resistant connections critical for load sharing between axles.
  • 5. Critical Brackets & Saddles: Subsystem Anchoring Points
  • General Brackets: Left Bracket, Right Bracket, Upper Bracket, and Bracket Assembly-Hanging Balance Cushion provide mounting points for suspensions, cab mounts, or other subsystems. Secured with combinations of Hexagon Flange Bolt Thick Rod (Standard Type), Hexagon Flange Bolt, SPL Small Hexagon Flange Lock Nut, and Washers.
  • Saddle Mounts: Left saddle bottom plate connection plate and Right saddle bottom plate connection plate interface with fifth wheel or other saddle assemblies, using Hexagon Flange Bolt Thick Rod (Standard Type).
  • 6. A-Beam Connection System: Reinforced Joints
  • Structural Interface: The A Beam Left/Right Upper Connecting Plates and A Beam Left/Right Lower Connecting Plates create reinforced junctions, likely for cab or powertrain support.
  • Fastening: Utilizes Hexagon Flange Bolt Thick Rod (Standard Type) and Round Head Rivets for high-integrity connections.
  • 7. Fastening Philosophy: Vibration Resistance & Integrity
  • High-Strength Bolting: Repeated use of Hexagon Flange Bolt Thick Rod (Standard Type) ensures exceptional shear strength. Paired with SPL Small Hexagon Flange Lock Nut or Hexagon Flange Lock Nut and often Washers, these create vibration-proof, fail-safe connections.
  • Permanent Riveting: Round Head Rivets provide superior, permanent shear strength at critical, high-stress joints like cross-member connections, ensuring long-term dimensional stability.

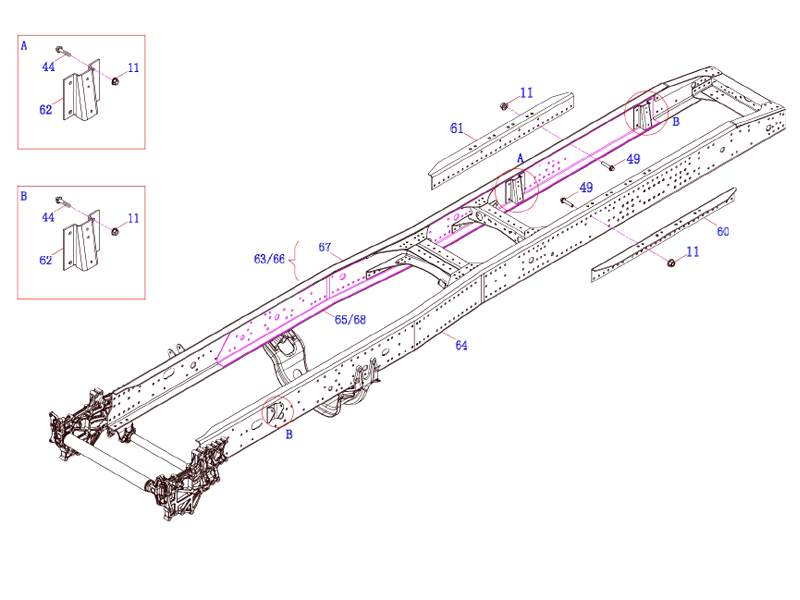

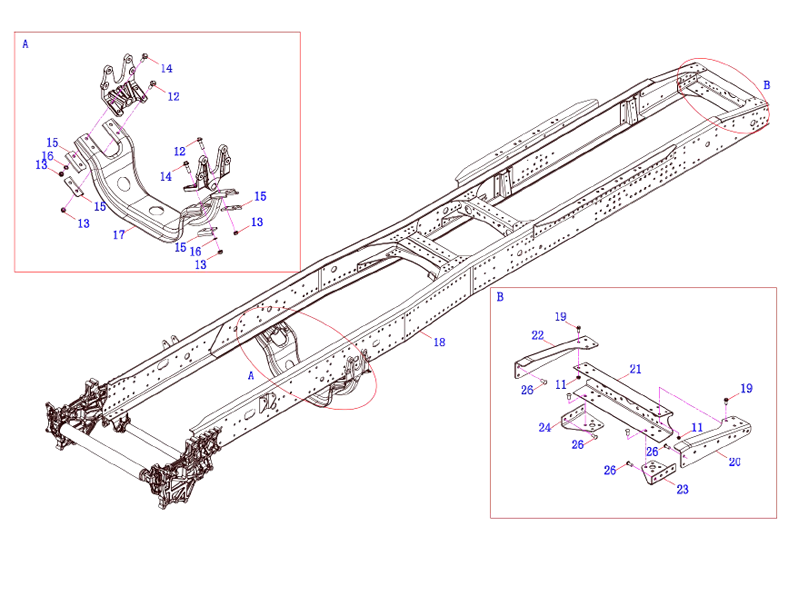

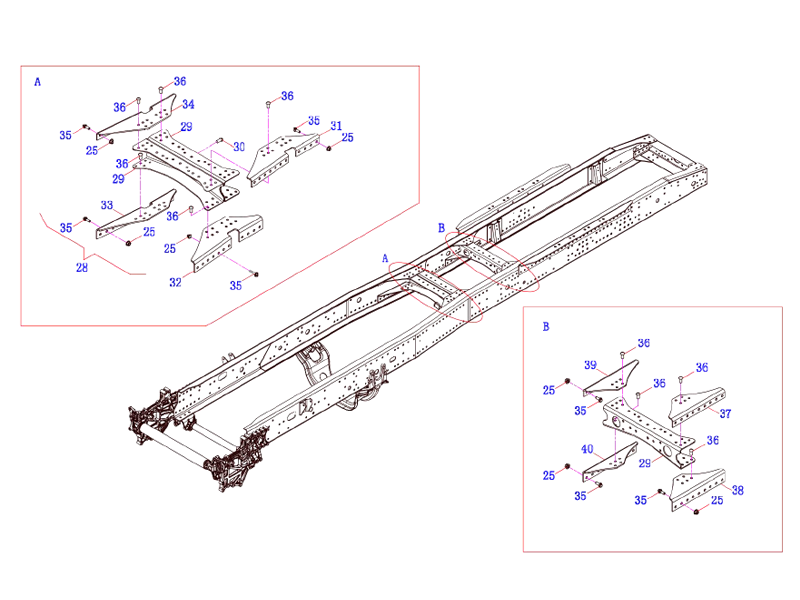

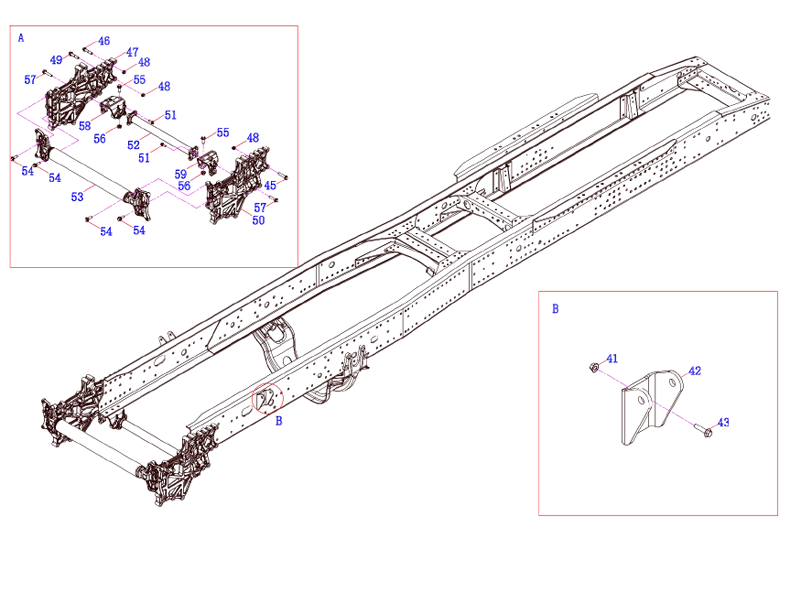

Product Parameters of FAW Frame Logic Assembly

Order Part NO. Part Name And Standards Oty
Frame Logic Assembly 1
1 2801177-242 Lower Connecting Plate 2
2 2801170-1507 Balance Suspension Cross Beam Assy 1
3 Q4501438 Round Head Rivet 16
4 2801173-242 Upper Connecting Board-Balance Suspension Cross Beam Assy 2
5 2801172-242 Balance Suspension Cross Beam 2
6 2801174-242 Left Connecting Plate-Balance Suspension Cross Beam Assy 2
7 Q4501440 Round Head Rivet 16
8 Q1841440T Hexagon Flange Bolt Thick Rod (Standard Type) 4
9 3724062-91W Right Bracket 1
10 3724061-91W Left Bracket 1
11 CQ32614 Hexagon Flange Lock Nut 4
12 Q1851450T Hexagon Flange Bolt Thick Rod (Standard Type) 4
13 T32714T SPL Small Hexagon Flange Lock Nut 8
14 Q1851455T Hexagon Flange Bolt Thick Rod (Standard Type) 4
15 2801093-1085 Reinforced Plate 4
16 2801097-1085 Washer 4
17 2801092-1063 Front Leaf Spring Rear Cross Member 1
18 2800010-DY683 Frame and Bracket Assembly 1
19 Q1841435T Hexagon Flange Bolt Thick Rod (Standard Type) 8
20 2801187-76W Rear Cross Member LH Upper Connection Plate 1
21 2801182-76W Rear Cross Member 1
22 2801188-76W Rear Cross Member RH Upper Connection Plate 1
23 2801183-76W Rear Cross Member Left Lower Connecting Plate 1
24 2801184-76W Rear Cross Member Right Lower Connecting Plate 1
25 CQ32614 Hexagon Flange Lock Nut 92
26 Q4501436 Round Head Rivet 22
27 Q4501434 Round Head Rivet 24
28 2801110-2000 Middle 1# Cross-Member Riveting Assembly 1
29 2801152-73A Middle Cross Member 3
30 Q4501232 Round Head Rivet 48
31 2801113A1052 A Beam Left Upper Connecting Plate 1
32 2801117A1052 A Beam Left Lower Connecting Plate 1
33 2801118A1052 A Beam Right Lower Connecting Plate 1
34 2801114A1052 A Beam Right Upper Connecting Plate 1
35 Q1841445T Hexagon Flange Bolt Thick Rod (Standard Type) 62
36 Q4501234 Round Head Rivet 20
37 2801153-73A Middle Cross Member Left Upper Connecting Board 1
38 2801157-73A Middle Cross Member Left Lower Connecting Board 1
39 2801154-73A Middle Cross Member Right Upper Connecting Board 1
40 2801158-73A Middle Cross Member Right Lower Connecting Board 1
41 T32714T SPL Small Hexagon Flange Lock Nut 4
42 2905411-1086 Upper Bracket 2
43 Q1851435T Hexagon Flange Bolt Thick Rod (Standard Type) 4
44 Q1841440T Hexagon Flange Bolt Thick Rod (Standard Type) 8
45 2801011-1063 Hexagon Flange Bolt 4
46 Q1841680T Hexagon Flange Bolt Thick Rod (Standard Type) 16
47 2801024-1063 Frame Right Front Add Long Beam 1
48 T32616T SPL Small Hexagon Flange Lock Nut 20
49 Q1841450T Hexagon Flange Bolt Thick Rod (Standard Type) 14
50 2801023-1063 Frame Left Front Add Long Beam 1
51 Q1851235T Hexagon Flange Bolt 8
52 2801090-1066 Right Front Spring Front Bracket Cross Member Welding Assembly 1
53 2801070-1063 Front Cross Member Assy 1
54 Q1851650T Hexagon Flange Bolt Thick Rod (Standard Type) 4
55 Q1851645T Hexagon Flange Bolt Thick Rod (Standard Type) 6
56 T32716T SPL Small Hexagon Flange Lock Nut 6
57 Q1851670T Hexagon Flange Bolt Thick Rod (Standard Type) 4
58 2902442A1063 Right Front Bracket-Front Leaf Spring 1
59 2902441A1063 Left Front Bracket-Front Leaf Spring 1
60 2801211-73B Left saddle bottom plate connection plate 1
61 2801212-73B Right saddle bottom plate connection plate 1
62 2801035-242 Bracket  Assembly-Hanging Balance Cushion 4
63 2801025-DY849 Left Longitudinal Member Assy 1
64 2801021-DY849 Left Rail 1
65 2801031-DY849 Inner Reinforcing Plate Of Left Longitudinal Beam 1
66 2801030-DY849 Right Longitudinal Member Assy 1
67 2801022-DY849 Right Rail 1
68 2801032-DY849 Inner Reinforcing Plate Of Right Longitudinal Beam 1
