What is the FAW Chassis Air Conditioner Module

  • The FAW Chassis Air Conditioner Module delivers critical cooling performance for FAW commercial vehicles, engineered to withstand harsh road conditions while optimizing refrigerant flow and heat dissipation. This chassis-mounted system prioritizes durability, leak prevention, and efficient thermal transfer.
  • Core Refrigeration Circuit
  • Condenser Assembly: Mounted at the vehicle’s front, this high-efficiency radiator dissipates heat from compressed refrigerant, converting it from gas to liquid. Its robust construction resists debris impact and vibration.
  • Cool Air Compressor Assembly: The system’s powerhouse, driven by the engine, pressurizes and circulates refrigerant through the closed loop.
  • High-Pressure Flexible Tubes:
  • Flexible High Pressure Tube – Condenser to Refrigerator: Channels condensed liquid to the receiver-drier/filter.
  • Flexible High Pressure Tube – Refrigerator to Compressor: Feeds filtered refrigerant to the compressor.
  • Flexible High Pressure Tube – Compressor to Condenser: Routes hot, pressurized gas to the condenser.
  • Expansion Valve Assembly (implied by circuit logic): Precisely meters refrigerant flow into the evaporator (located in the cabin module).
  • Coolant Integration & Engine Thermal Management
  • Water Inlet Hose & Water Outlet Hose: Connect the engine coolant circuit to the cab’s Heater Core Assembly (in Body Module), enabling cabin heating.
  • Worm Drive Type Hose Clamp Type B: Secures coolant hoses with adjustable, vibration-resistant tension to prevent leaks.
  • Heavy-Duty Mounting & Vibration Control
  • Bracket: Provides structural support for the Condenser and Compressor.
  • Multi-Stage Fastening System:
  • Hexagon Flange Bolt & Hexagon Head Bolt: High-torque bolts for rigid component mounting.
  • Assembling Bolt (x4): Critical for sub-assembly joints requiring precision alignment under stress.
  • Spring Washer: Prevents bolt loosening from chassis vibrations.
  • Pipe Securing Solutions:
  • Double Pipe Clamp / Double Pipe Clamp-Cool Air Pipe: Reinforced clamps for bundling refrigerant lines, minimizing abrasion and fatigue.
  • Single Pipe Clip-Heater Water Pipe: Isolates and secures coolant lines along the chassis frame.
  • Plastic Fastening Strap: Manages wiring/hose routing without damage.
  • Engineering for Extreme Environments
  • This module exemplifies FAW’s focus on reliability:
  • Refrigerant Circuit: Flexible tubes withstand pressure surges and chassis flex, while Double Pipe Clamps eliminate line contact.
  • Thermal Management: Efficient Condenser Assembly placement maximizes airflow cooling, critical under heavy loads.
  • Vibration Defense: Hexagon Flange Bolts, Spring Washers, and Assembling Bolts create a multi-stage anti-shock mounting system.
  • Leak Prevention: Worm Drive Clamps (Type B) and precision-molded hoses ensure sealed performance over thousands of miles.
  • Purpose-Built Durability:
    The FAW Chassis Air Conditioner Module is engineered for commercial rigor. Its chassis integration optimizes space, protects core components (Compressor, Condenser) with reinforced Brackets, and utilizes military-grade fasteners (Hexagon Head Bolts, Spring Washers) to survive unpaved roads and extreme temperatures. Every clamp, strap, and bolt is selected to combat vibration – the primary threat to mobile HVAC systems. This module guarantees sustained cooling power, directly impacting driver comfort and operational uptime

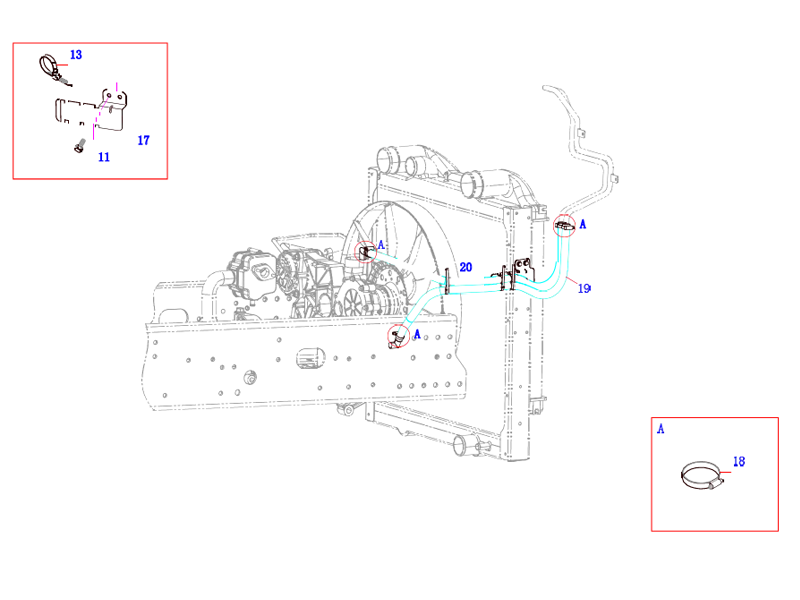

Product Parameters of FAW Chassis Air Conditioner Module

Order Part NO. Part Name And Standards Oty
    Chassis Air Conditioner Module
1 CQ1460825 Assembling Bolt 4
2 8105010-1600-C00 Condenser Assembly 1
3 CQ1460630 Assembling Bolt 2
4 8108130-DY803 Flexible  High  Pressure Tube-Condenser to Refrigerator 1
5 8108060-DY889N Flexible High Pressure Tube – Refrigerator to Compressor 1
6 8108080-DY799 Flexible High Pressure Tube-Compressor  to Condenser 1
7 Q1840625 Hexagon  Flange Bolt 1
8 CQ1460616 Assembling Bolt 2
9 8108153-776 Double Pipe Clamp-Cool Air Pipe 1
10 8108153-1063 Double Pipe Clamp 1
11 CQ1460816 Assembling Bolt 3
12 8116056-3B9 Single Pipe Clip-Heater Water  Pipe 1
13 T67427946 Plastic  Fastening Strap 4
14 CQ1500895 Hexagon Head Bolt 4
15 Q40310 Spring Washer 4
16 8103020-DY601 Cool Air Compressor Assembly 1
17 8116122-1063 Bracket 1
18 CQ67627B Worm Drive Type Hose Clamp Type  B 4
19 8116712-1511 Water Outlet Hose 1
20 8116711-1511 Water Inlet Hose 1
