What is the FAW Brake Pipeline Logic Assembly

  • 1. FAW Brake Pipeline Logic Assembly: Air Brake Nervous System
    This comprehensive assembly forms the organized network for the FAW truck’s air brake system. It meticulously routes, secures, and protects critical air lines and wiring harnesses throughout the chassis, ensuring reliable air pressure delivery to brake chambers, valves, and auxiliary systems for safe, consistent stopping power.
  • 2. Core Air Pipe Routing & Bundling
  • Pipe Bundle Assembly: The organized grouping of air lines and potentially electrical harnesses, secured together for efficient routing and protection.
  • Air Hose Assembly: Flexible air hoses used in sections requiring vibration isolation or connection between fixed components.
  • Middle Air Pipe Assy / Air Pipe Assembly: Rigid or semi-rigid tubing sections carrying compressed air to different chassis zones (front, rear, intermediate).
  • Pipe Bundle Clamp / Pipe Clip Bracket / Plastic Fastening Strap / Cable Ties: Various clips, straps (Plastic Fastening Strap, Cable Ties), and dedicated brackets (Pipe Clip Bracket) used to neatly bundle and secure the Pipe Bundle Assembly along its route, preventing tangling, chafing, and damage.
  • 3. Chassis Mounting & Support Infrastructure
  • Front Wall Pipe Bundle Bracket Assembly / Bracket-Intermediate Rear Axle Bundle / Bracket-Fixing Air Pipe / Pipe Bundle Bracket / Chassis Wire Harness Bracket / Air Pipe Bracket: Dedicated, robust steel brackets mounted at strategic locations on the chassis frame, crossmembers, or cab rear (Front Wall). They provide secure anchor points specifically for the Pipe Bundle Assembly and air lines (Bracket-Fixing Air Pipe).
  • 20mm Universal Support for Wire Harness: A versatile mounting point potentially shared by the brake air lines and the Chassis Wiring Harness Bracket.
  • Clamp: Generic term for a securing device, often used with brackets.
  • 4. Auxiliary Air Supply & Critical Connections
  • Auxiliary Air Supply Module Assembly: A key distribution point or reservoir within the air system, potentially supplying secondary circuits (e.g., trailer brakes, suspension dump). Includes the core Auxiliary Air Supply Module.
  • Seal Pipe Connector: Ensures leak-proof connections between air lines or at module ports.
  • Brake Hose Assy-Front Brake: Specific high-pressure hose connecting the front axle brake lines to the relay valves or chambers.
  • Threaded Sleeve (M10) With Seal Ring Assy: A sealed threaded fitting used for secure connections on the air modules or valves.
  • Circlip(Φ 6) / Special Shaped Seal Ring(Φ 6.5): Specialized sealing components (Special Shaped Seal Ring) and retaining rings (Circlip) used within the Auxiliary Air Supply Module Assembly for internal sealing and component retention.
  • 5. Vibration Damping & Contaminant Protection
  • Cushion-Air Pipe: Rubber or polymer cushions placed between air pipes and their mounting brackets/clamps. They absorb chassis vibrations, preventing metal-to-metal contact and fatigue cracking in the air lines.
  • Air Pipe Bushing: Similar to cushions, these isolate pipes at penetration points through brackets or chassis members.
  • Rubber Seal Ring: Provides sealing at connection points or where pipes pass through panels, preventing air leaks and dust/water ingress.
  • 6. Precision Fastening & Locking Hardware
  • Hexagon Flange Bolt Thick Rod (Standard Type): The primary high-strength fastener used for critical mounting points like major brackets (Front Wall Pipe Bundle Bracket Assembly, Bracket-Intermediate Rear Axle Bundle) and the Auxiliary Air Supply Module Assembly. The thick rod and flange provide superior shear strength and load distribution.
  • Hexagon Flange Bolt: Standard flange bolt used for various mounts.
  • Hexagon Head Bolt / Assembling Bolt: Versatile bolts used throughout the assembly for mounting smaller brackets and components.
  • SPL Small Hexagon Flange Lock Nut / Hexagon Flange Lock Nut / Hexagon Flange Nut: Locking nuts (SPL Small Hex Flange Lock Nut, Hex Flange Lock Nut) and standard nuts (Hex Flange Nut, Hexagon Nut) paired with flange bolts, ensuring vibration-resistant, secure connections. The “SPL” often denotes a specific small pattern lock nut.
  • Hexagon Nut: Standard nuts.
  • Spring Washer: Used under nuts or bolt heads to provide a locking action against vibration-induced loosening.
  • Washer: Flat washers distribute load and protect surfaces.

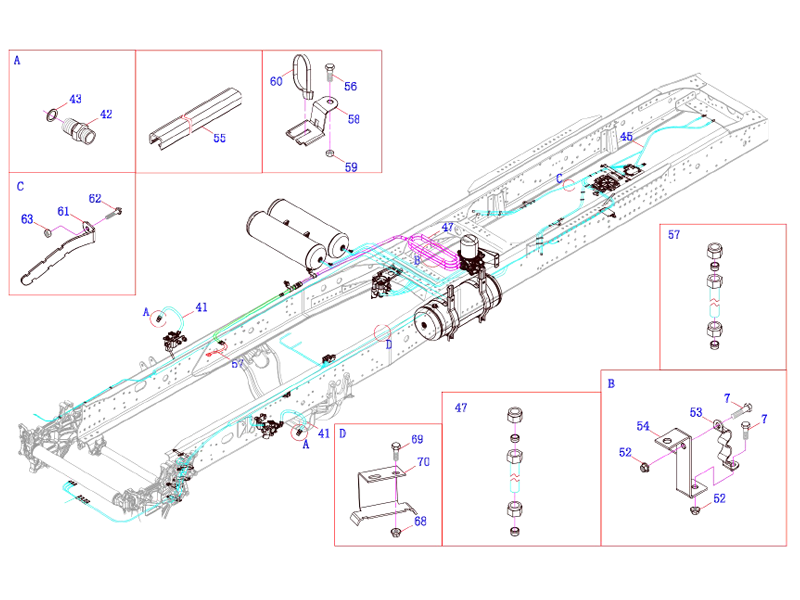

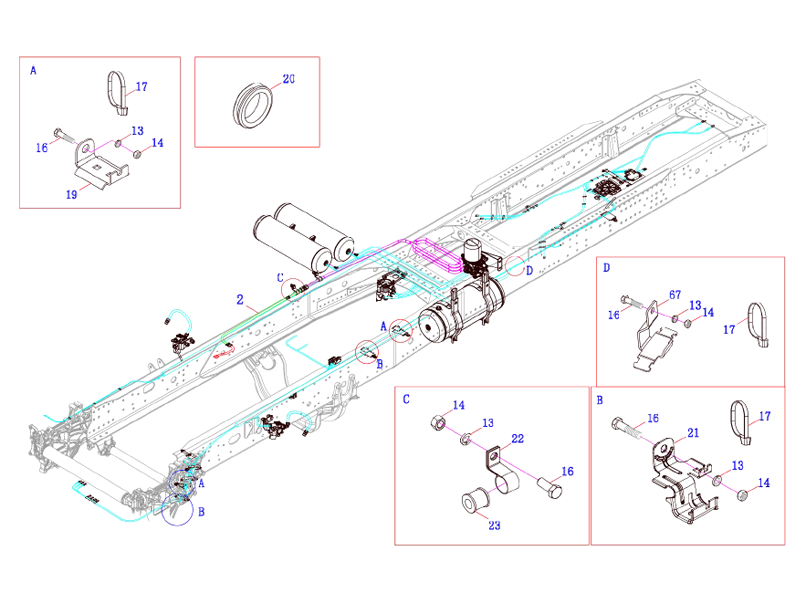

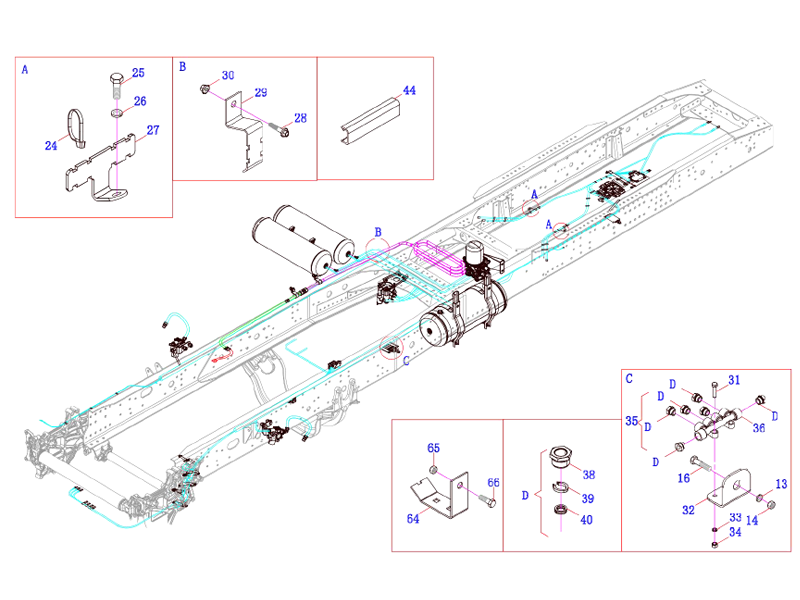

Product Parameters of FAW Brake Pipeline Logic Assembly

Order Part NO. Part Name And Standards Oty
Brake  Pipeline Logic Assembly 1
1 3506100-DY889Q Pipe  Bundle Assembly 1
2 3506010-DY605 Air Hose Assembly 1
3 3506430-DY806 Front Wall Pipe Bundle Bracket  Assembly 1
4 Q1841685T Hexagon Flange Bolt   Thick Rod (Standard Type) 2
5 T32616TF2 SPL Small Hexagon Flange Lock  Nut 2
6 3506425-DY806 Front Wall Pipe Bundle Bracket  Assembly 1
7 CQ1500820 Hexagon Head Bolt 6
8 Q40308 Spring Washer 2
9 CQ34008 Hexagon Nut 2
10 CQ1501440 Hexagon Head Bolt 1
11 3506423-DW174Q Bracket 1
12 Q40114 Washer 1
13 Q40314 Spring Washer 14
14 CQ34014 Hexagon Nut 14
15 3506424-DY775A Pipe  Bundle Bracket 1
16 CQ1501435 Hexagon Head Bolt 14
17 3723011-81W-C00 Cable Ties 14
18 3724426-DY799 Bracket 2
19 3724657-2000 20mmUniversal  support for wire harness 2
20 3724031-DY899 Rubber Seal Ring 1
21 3724689-2000 Chassis Wire  Harness Bracket 4
22 3506207-50A Pipe Clip Bracket 2
23 3506208-50A Air Pipe Bushing 2
24 T67427946 Plastic  Fastening Strap 16
25 Q40312 Spring Washer 6
26 CQ1511220 Hexagon Head Bolt 4
27 3506328-368 Bracket-Intermediate Rear  Axle Bundle 4
28 Q1841445T Hexagon Flange Bolt Thick Rod (Standard  Type) 1
29 3506423-DY789 Bracket-Fixing  Air Pipe 1
30 CQ32614 Hexagon Flange Lock Nut 1
31 CQ1500520 Hexagon Head Bolt 2
32 3506352-81W Bracket 1
33 Q40305 Spring Washer 1
34 CQ34005 Hexagon Nut 2
35 3506350-1500 Auxiliary Air Supply Module  Assembly 1
36 3506351-1500 Auxiliary Air Supply Module 1
38 3506420-1500 Threaded Sleeve (M10) With Seal Ring  Assy 6
39 3506417-1500 Circlip(Φ 6) 6
40 3506413-1500 Special Shaped Seal Ring(Φ  6.5) 6
41 3506040-1051 Brake  Hose Assy-Front Brake 2
42 3515013-93 Seal  Pipe Connector 2
43 CQ72316 Washer 2
44 3506107-73A Cushion-Air Pipe 1
45 3506200-DY621 Intermediate Rear Axle Bundle  Assembly 1
46 3506453-DY806 Pipe Bundle Clamp 3
47 3506210-DY799 Middle Air Pipe Assy 1
52 CQ32608 Hexagon Flange Lock Nut 4
53 3506432-56A Clamp 2
54 3506432-66U Air Pipe Bracket 2
55 3506108-73A Cushion-Air Pipe 2
56 CQ1501230 Hexagon Head Bolt 2
57 3506205-DY604 Air Pipe Assembly 1
58 3506426-52C Pipe  Bundle Bracket 2
59 CQ34012 Hexagon Nut 2
60 3506111-DV111 Cable Ties 2
61 3506414-2000 Pipe  Bundle Bracket 2
62 CQ1461035 Assembling Bolt 2
63 CQ34010 Hexagon Nut 2
64 3506424-91W Pipe  Bundle Bracket 1
65 T32614T SPL Small Hexagon Flange Lock  Nut 1
66 Q1841440T Hexagon Flange Bolt Thick Rod (Standard  Type) 1
67 3506424-89V Pipe  Bundle Bracket 2
68 CQ39614 Hexagon Flange Nut 2
69 Q1841430 Hexagon  Flange Bolt 2
70 3724602-1579 Chassis Wiring Harness Bracket 1
