What is the FAW Air Reservoir Device Assembly

  • 1. FAW Air Reservoir Device Assembly: Compressed Air Core
    This integrated assembly forms the secure storage and management hub for the FAW truck’s critical compressed air supply. Mounted strategically on the chassis, it houses primary and auxiliary air tanks, ensures leak-free connections, incorporates essential valves and sensors, and provides structural support for adjacent components like the battery box, guaranteeing reliable air pressure for braking and auxiliary systems.
  • 2. Robust Structural Mounting & Integration
  • Transition Bracket-Air Reservoir Module / Air Reservoir Bracket / Air Reservoir And Battery Bracket Assy / Bracket Assembly-Sub ir Reservoir: Heavy-duty, vehicle-specific brackets providing the primary mounting foundation. These ensure secure attachment of the Air Storage Tank Assy, Dual-Chamber Air Reservoir Assembly, and integrated Battery Partition to the chassis frame.
  • Hexagon Flange Bolt Thick Rod (Standard Type): The primary high-strength fastener used for critical mounting points. Its thick rod and integrated flange provide exceptional shear strength, vibration resistance, and load distribution for securing major reservoirs and brackets.
  • Hexagon Flange Lock Nut: Paired with the thick rod flange bolts, these lock nuts feature integrated locking elements (e.g., nylon, deformed threads) to prevent loosening under constant vibration, crucial for safety-critical components.
  • Hexagon Flange Bolt / Hexagon Head Bolt / Hexagon socket head cap screw: Versatile fasteners used for securing smaller brackets, covers, and components throughout the assembly.
  • Hexagon Nut / Spring Washer / Washer: Standard nuts, spring washers (for vibration resistance), and flat washers (for load distribution) used with various bolts.
  • 3. Primary & Auxiliary Air Storage
  • Air Storage Tank Assy: The main reservoir storing a large volume of compressed air for primary brake functions and system supply.
  • Dual-Chamber Air Reservoir Assembly / Dual-Chamber Air Reservoir With Joint Assembly: A reservoir divided into two sections (typically primary and secondary circuits), often featuring integrated ports (With Joint Assembly). This ensures segregated air supplies for enhanced system safety and function.
  • Strap Assembly / Strap Assembly-Sub ir Reservoir: Heavy-duty steel straps providing additional circumferential clamping and support for securing air tanks within their brackets, preventing movement.
  • 4. Sealed Connections & Port Management
  • Air Reservoir and Its Pipe Connector Assembly: Pre-assembled units comprising the tank port and its connecting fitting, ensuring a ready leak-proof interface for air lines.
  • Threaded Sleeve (M22) With Seal Ring Assy / Threaded Sleeve (M16) With Seal Ring Assy: Sealed fittings providing robust, leak-proof connections for air lines of different sizes (M22, M16) to the reservoir ports.
  • Plug (M22) With Seal Ring Assy: Sealed plugs used to blank off unused ports on reservoirs.
  • Special Shaped Seal Ring(Φ 15.2) / Special Shaped Seal Ring(Φ 9.7): Precision-engineered seals creating high-integrity, pressure-tight barriers within the larger (Φ15.2mm) and smaller (Φ9.7mm) threaded sleeve assemblies.
  • Circlip(Φ 12) / Circlip(Φ 10): Internal retaining rings securing components like valve seats or pistons within the reservoir assemblies or connected valves under pressure.
  • Seal Ring: General sealing components used at various interfaces.
  • 5. Air Management, Drainage & Monitoring
  • Water Drainage Valve Assembly: Essential manual or automatic valve mounted at the reservoir’s lowest point, allowing periodic purging of accumulated condensate to prevent corrosion and freezing.
  • Baroceptor Assembly: An air pressure sensor monitoring reservoir pressure, providing critical data to the vehicle’s electronic control system for functions like low-pressure warning.
  • To Detect Joint: Likely a diagnostic port or sensor connection point associated with the Baroceptor Assembly for pressure monitoring or system testing.
  • 6. Integrated Battery Mounting & Protection
  • Battery Partition / Battery Lower Baffle: Structural elements integrated within the Air Reservoir And Battery Bracket Assy, creating a dedicated, secure compartment for the vehicle battery(ies).
  • Ribbon-For Fixing Battery: Metal straps used to securely clamp the battery within its compartment, preventing movement during vehicle operation.
  • Cover Plate With Locking Bolt Assembly: A protective cover likely for the battery compartment or specific reservoir components, secured with locking bolts.
  • 7. Ancillary Components & Securement
  • Air Supply Unit Assembly: Potentially refers to a combined unit incorporating the compressor, governor, and related valves, or specifically denotes the air dryer/filter assembly feeding the reservoirs.
  • Cable Ties: Used for supplementary routing and securing of wiring harnesses near the reservoirs and battery box.

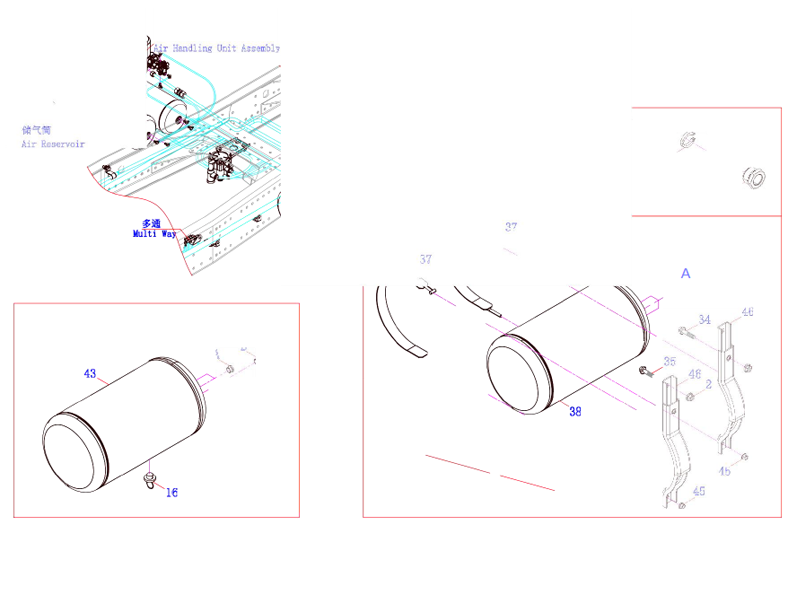

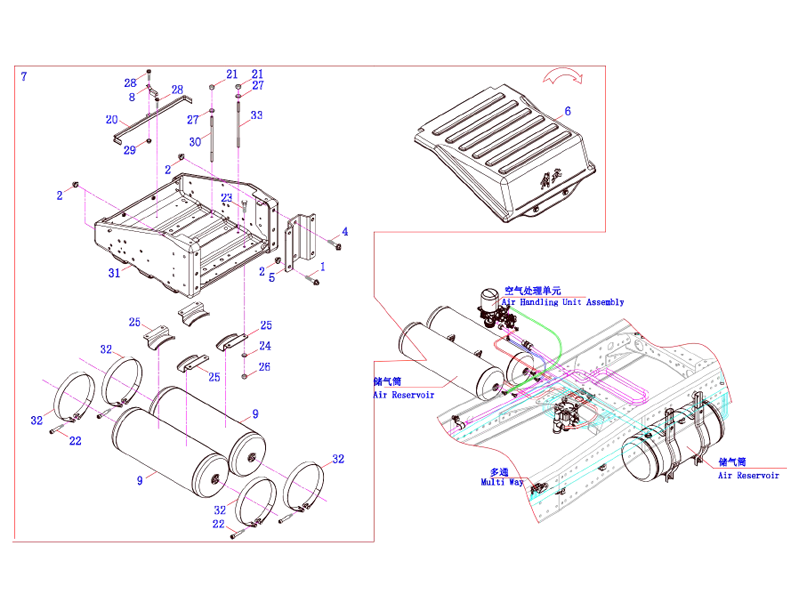

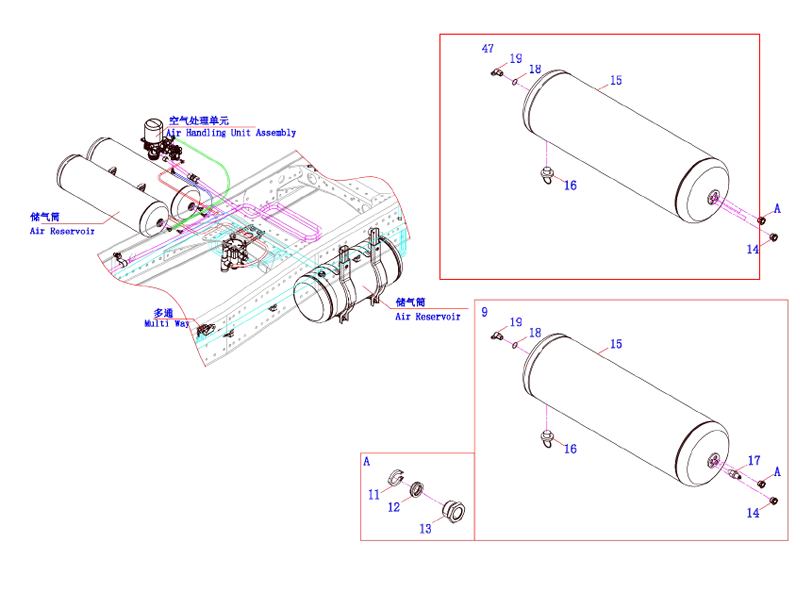

Product Parameters of FAW Air Reservoir Device Assembly

Order Part NO. Part Name And Standards Oty
Air Reservoir  Device Assembly 1
1 Q1841450T Hexagon Flange Bolt Thick Rod (Standard  Type) 9
2 CQ32614 Hexagon Flange Lock Nut 17
4 Q1841440T Hexagon Flange Bolt Thick Rod (Standard  Type) 4
5 3513824-DY789 Transition Bracket-Air  Reservoir Module 1
6 3513850-91W Cover Plate With Locking Bolt  Assembly 1
7 3513900-DY789E Air Supply Unit Assembly 1
8 3703164-92W Battery Partition 2
9 3513600-DY789 Air Reservoir and Its Pipe  Connector Assembly 1
11 3513407-1500 Circlip(Φ 12) 8
12 3513403-1500 Special Shaped Seal Ring(Φ  15.2) 8
13 3513410-1500 Threaded Sleeve (M22) With Seal Ring  Assy 8
14 3513420-1500 Plug (M22) With Seal Ring Assy 3
15 3513060-DY789 Air Storage Tank Assy 2
16 3513100-1500 Water  Drainage Valve Assembly 4
17 3757010-DX630 Baroceptor Assembly 1
18 3513408-50A Seal Ring 2
19 3513700-D814 To Detect Joint 2
20 3703163-92W Battery Lower Baffle 2
21 CQ34008 Hexagon Nut 6
22 CQ2180870Q Hexagon socket head cap screw 4
23 CQ1501025 Hexagon Head Bolt 8
24 Q40310 Spring Washer 8
25 3513081-91W Air Reservoir  Bracket 4
26 CQ34010 Hexagon Nut 8
27 Q40308 Spring Washer 6
28 Q1840616 Hexagon  Flange Bolt 10
29 CQ32606 Hexagon Flange Lock Nut 10
30 3513114-DY604 Ribbon-For  Fixing Battery 3
31 3513800-91W Air Reservoir And Battery Bracket  Assy 1
32 3513095-91W Strap Assembly 4
33 3513114-DY604A Ribbon-For  Fixing Battery 3
34 Q1841475 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
35 Q1841440 Hexagon Flange Bolt Thick Rod (Standard  Type) 2
36 3513300-91W Air Reservoir And Bracket Assy 1
37 3513085-91W Strap Assembly-Sub ir Reservoir 2
38 3513100-DY789 Dual-Chamber  Air Reservoir  With Joint Assembly 1
40 3506407-1500 Circlip(Φ 10) 1
41 3506403-1500 Special Shaped Seal Ring(Φ  9.7) 1
42 3506410-1500 Threaded Sleeve (M16) With Seal Ring  Assy 1
43 3513010-DY789 Dual-Chamber  Air Reservoir Assembly 1
44 3506111-DV111 Cable Ties 6
45 CQ32610 Hexagon Flange Lock Nut 2
46 3513075-75A Bracket Assembly-Sub ir Reservoir 2
47 3513600-DY789A Air Reservoir and Its Pipe  Connector Assembly 1
