What is the Beiben Tail Light Module？

  • Beiben Tail Light Module​
  • Introduction​
  • The Beiben Tail Light Module is a high-performance solution engineered to enhance rear-end visibility, safety, and durability in heavy-duty commercial vehicles. Designed to withstand harsh road conditions, this module integrates precision Left/Right Combination Tail Lights, a reliable Combination Tail Light Cable Assembly, and robust Stockpile support structures, ensuring consistent performance and compliance with international safety standards.​
  • Core Components and Design​
  • At the heart of the module are the Left Combination Tail Light and Right Combination Tail Light, featuring advanced LED technology for superior brightness and energy efficiency. These lights are encased in impact-resistant polycarbonate housings with UV-stabilized coatings to prevent yellowing and lens degradation, even after years of exposure to sunlight and extreme temperatures (-40°C to +85°C). The multi-function design supports brake, turn, reverse, and side marker signals, with reflective panels optimized for 360° visibility to alert other road users effectively.​
  • The Combination Tail Light Cable Assembly is a pre-terminated wiring solution with shielded cables and waterproof connectors, ensuring reliable electrical connectivity between the tail lights and the vehicle’s central control system. The cables are reinforced with braided polyester jackets to resist abrasion from road debris, while gold-plated terminals minimize corrosion and voltage loss, maintaining consistent signal transmission.​
  • Secure Mounting and Structural Support​
  • Three Stockpile brackets—heavy-duty steel structures—provide rigid support for the tail lights and cable assembly. These brackets are strategically contoured to match the vehicle’s underbody profile, distributing mechanical stress from vibrations and impacts evenly. Each Stockpile is secured to the frame using high-tensile Nuts and Washers, with flat washers ensuring uniform load distribution and spring washers preventing loosening from continuous road vibrations (torque specification: 45–60 N·m). The modular design of the brackets allows for quick alignment during installation, reducing assembly time by up to 40%.​
  • Engineering Excellence for Durability​
  • Every component in the Beiben Tail Light Module undergoes rigorous testing to ensure reliability. The Left/Right Combination Tail Lights are impact-tested to withstand 50 Joules of force and salt-spray tested for 1,000+ hours to validate corrosion resistance, while the Combination Tail Light Cable Assembly is cycled 10,000+ times under flex stress to simulate decade-long use. The Stockpile brackets receive a dual-layer anti-corrosive coating, protecting against rust and abrasion from gravel and chemical-laden road runoff.​
  • Performance and Operational Benefits​
  • The module enhances road safety by delivering clear, consistent tail light signals, critical for preventing rear-end collisions in low-visibility conditions. The Stockpile support system eliminates light misalignment caused by vibrations, while the Combination Tail Light Cable Assembly’s waterproof design reduces maintenance costs by eliminating moisture-related electrical faults. The LED technology offers a service life of over 50,000 hours, significantly reducing replacement frequency compared to traditional incandescent lights.​
  • Conclusion: Reliable Visibility for Heavy-Duty Applications​
  • The Beiben Tail Light Module sets a standard for durability, safety, and performance in commercial vehicle rear lighting systems. By integrating high-efficiency Left/Right Combination Tail Lights, a robust Combination Tail Light Cable Assembly, and reinforced Stockpile brackets, Beiben ensures this module delivers reliable visibility and long-term protection, even in the most punishing environments. It exemplifies the brand’s commitment to engineering excellence, providing a trusted solution for fleets that demand uncompromising safety and durability.​

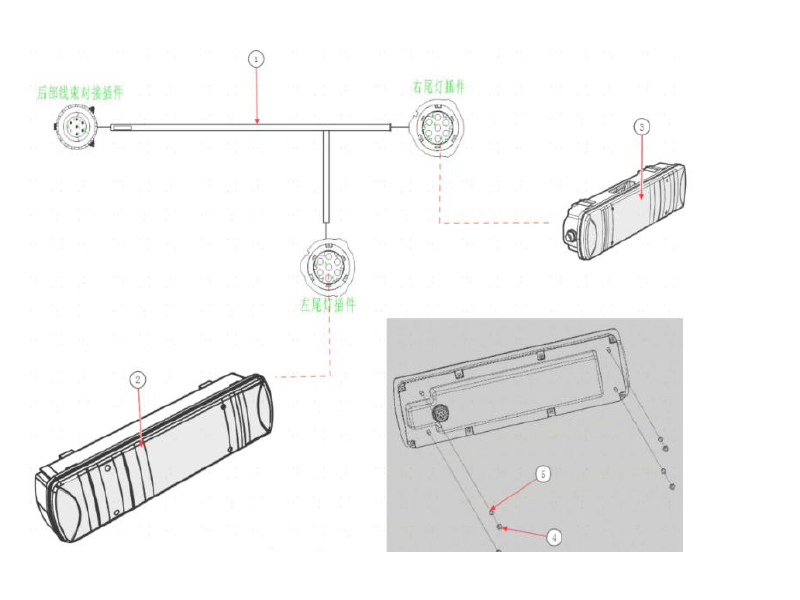

Product Parameters of Beiben Tail Light Module

No. Part Number Part Name English  Quantity
1 520 540 56 07 Combination Tail Light Cable Assembly  1
2 881 544 01 03 Left Combination Tail Light  1
3 881 544 02 03 Right Combination Tail Light  1
4 106170 008101 Nut  4
5 100093 008101 Washer  4
6 001 997 84 90 Stockpile  4
7 001 997 84 90 Stockpile  2
8 001 997 84 90 Stockpile 1
