Beiben Rear Suspension

Beiben Rear Suspension
Beiben Rear Suspension
Download Catalog
Get Quotation

What is the Beiben Rear Suspension？

  • Beiben Rear Suspension
  • Introduction
  • The Beiben Rear Suspension is a critical component system designed to support the vehicle’s engine, drivetrain, and cargo load while ensuring optimal ride comfort and handling. Engineered for durability and precision, this suspension system integrates robust mounting components and fasteners to secure the engine and manage dynamic forces generated during vehicle operation.
  • Engine Mounting Structure
  • The Engine mounts form the foundation of the rear suspension system, providing a stable interface between the engine and the vehicle’s frame. The Engine Left Rear Mount and Engine Right Rear Bracket are strategically positioned to distribute engine weight evenly, reducing stress on individual components. These mounts are secured to the frame using Bolts, Nuts, and multiple Washers, which prevent loosening due to vibrations and ensure a tight, reliable connection.
  • Secure Fastening and Sealing
  • Each connection point in the Beiben Rear Suspension is reinforced with precision-engineered hardware. Bolts are paired with Washers to distribute load and prevent damage to mounting surfaces. Gaskets and Cover Plates, secured with additional Bolts and Washers, seal critical areas to protect against contaminants and moisture, extending the lifespan of the suspension components.
  • Engineering Excellence for Durability
  • Every component in the Beiben Rear Suspension undergoes rigorous testing for fatigue resistance, corrosion protection, and dimensional accuracy. The Engine Rear Bracket is fabricated from high-strength steel to withstand heavy loads and dynamic stresses, while the use of Washers and Gaskets ensures consistent clamping force and sealing performance. The system’s modular design allows for efficient maintenance and replacement of individual parts as needed.
  • Conclusion: Reliable Performance for Heavy-Duty Applications
  • The Beiben Rear Suspension delivers the robustness and precision required for heavy-duty vehicles operating in demanding environments. By integrating secure engine mounts, durable brackets, and reliable fastening components, Beiben ensures operators can trust their vehicles to perform consistently under challenging conditions. This suspension system exemplifies Beiben’s commitment to engineering excellence in commercial vehicle manufacturing.

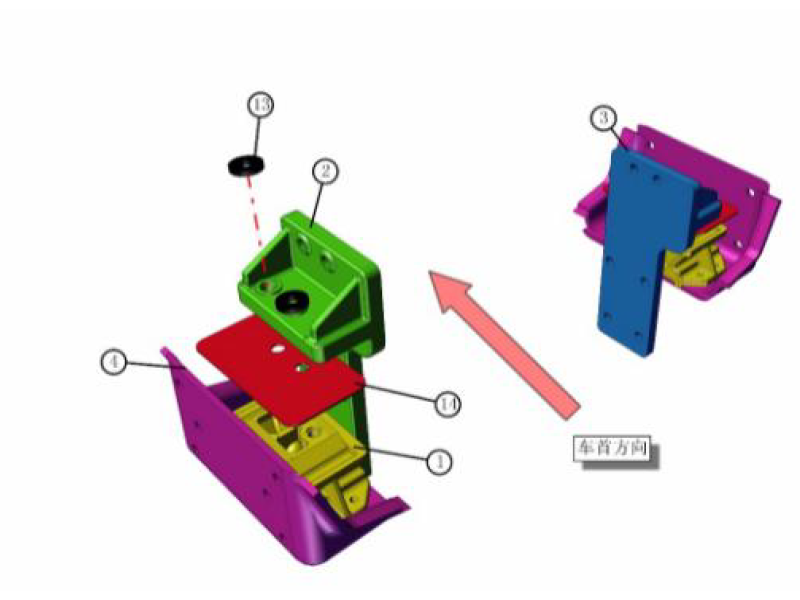

Product Parameters of Beiben Rear Suspension

No. Part Number Part Name English  Quantity
1 652 240 03 18 Engine mounts 2
2 506 242 44 01 Engine Left Rear Mount 1
3 506 242 45 01 Engine Right Rear Bracket 1
4 520 240 02 06 Engine Rear Bracket 2
5 105786 016104 Bolt 8
6 105786 016120 Bolt 4
7 106184 016100 Nut 4
8 100097 016100 Washers 12
9 105786 012050 Bolt 8
10 100097 012000 Washers 8
11 107245 012000 Washers 8
12 105786 016090 Bolt 4
13 352 990 24 40 Gasket 4
14 383 242 00 34 Cover Plate 2
15 105786 014030 Bolt 10
16 100093 014100 Washers 10
