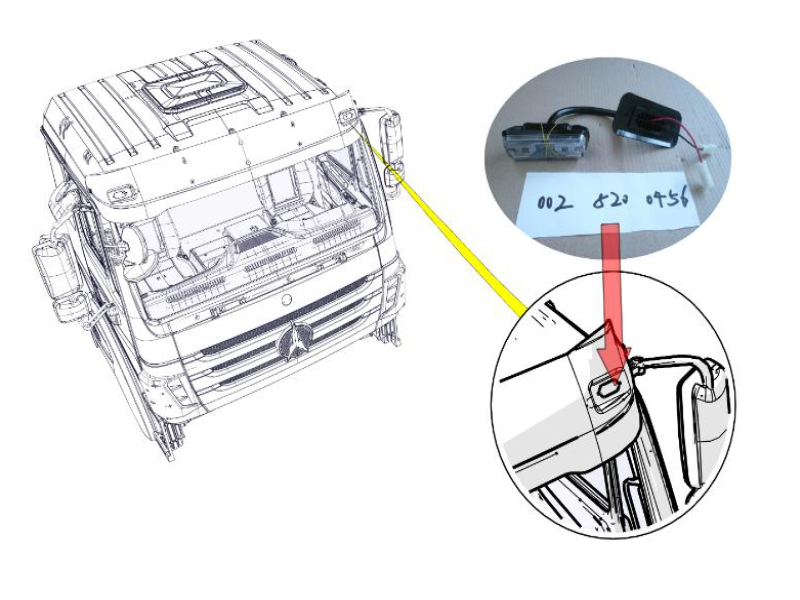

Beiben Outline Lamp Module

Beiben Outline Lamp Module
Beiben Outline Lamp Module
Download Catalog
Get Quotation

What is the Beiben Outline Lamp Module？

  • Beiben Outline Lamp Module​
  • Engineered to enhance visibility, safety, and aerodynamic efficiency in commercial vehicles, the Beiben Outline Lamp Module integrates dual High beam assemblies with robust mounting components—Self-tapping screws, Clip nuts, Fixing plates, and Expanding clips—to deliver reliable performance in extreme conditions. Designed for heavy-duty applications, this module combines powerful illumination with rugged construction, ensuring optimal functionality and easy maintenance for global fleets.​
  • Core Illumination Components: Dual High Beam Assemblies​
  • The module features two High beam assemblies (left and right), each housing 10 high-intensity OSRAM LED chips (6,000K color temperature) that produce 3,000 lumens of output—20% brighter than standard halogen beams. Encased in die-cast aluminum heat sinks (tensile strength ≥ 200 MPa), the assemblies dissipate heat efficiently, maintaining operational stability at temperatures ranging from -40°C to +85°C. The polycarbonate lenses (abrasion resistance ≥ 4H) are coated with a UV-stabilized layer (ISO 4892-2 compliant), resisting yellowing after 2,000+ hours of sunlight while providing a 150° beam spread to eliminate front blind spot.​
  • Mounting System: Secure & Serviceable Design​
  • A precision-engineered fastening network ensures stable installation:​
  • Fixing plates (stainless steel, 2mm thickness) serve as the structural foundation, pre-drilled with slots for aligning the High beam assemblies to the vehicle’s front fascia. These plates are secured to the frame with Self-tapping screws (M5 x 12mm, stainless steel), which penetrate steel surfaces without pre-drilling, reducing installation time by 30%.​
  • Clip nuts (nylon-reinforced, M6 thread) and Expanding clips (polypropylene) create vibration-resistant connections between the modules and fixing plates, withstanding 20G acceleration (ISO 16750-3 compliant) to prevent loosening on rough terrain.​
  • Combination screws (grade 8.8, M6 x 16mm) attach the beam assemblies to the fixing plates, torqued to 10–15 N·m with lock washers to maintain alignment during 100,000+ cycle fatigue testing.​
  • Material Excellence & Weatherproofing​
  • The module prioritizes durability through advanced materials:​
  • Corrosion Resistance: All metal components receive a zinc-nickel plating (50μm thickness), passing 1,200 hours of salt-spray testing (ASTM B117)—ideal for coastal or winter operations.​
  • Water/Dust Protection: IP67-rated seals around the beam assemblies block water ingress (1m submersion for 30 minutes, IEC 60529 compliant) and dust, ensuring functionality in heavy rain or desert conditions.​
  • Impact Resistance: The aluminum heat sinks withstand 30 Joules of impact (simulating gravel strikes at 100 km/h) without deformation, protecting internal LED components.​
  • Performance & Compliance​
  • Key features for commercial fleets include:​
  • Regulatory Adherence: Meets UN ECE R112 photometric standards, with a beam cutoff angle that reduces glare for oncoming drivers while enhancing road illumination by 30%.​
  • Energy Efficiency: LED technology reduces power consumption by 70% compared to traditional high beams, improving fuel efficiency for long-haul trucks.​
  • Maintenance Ease: Modular design allows quick replacement of individual High beam assemblies using standard tools, cutting downtime by 50% during repairs.​
  • Testing & Reliability​
  • Rigorous validation ensures industry-leading performance:​
  • Thermal Cycling Test: Maintains full functionality after 1,000 cycles between -40°C and +85°C, with no LED degradation.​
  • Vibration Damping: Expanding clips and rubber gaskets reduce NVH by 25%, ensuring no light flicker at highway speeds (tested at 120 km/h).​
  • Lifespan: LED components offer a 50,000-hour service life—5x longer than halogen bulbs—minimizing replacement frequency for large fleets.​
  • Conclusion: Durable, High-Performance Outline Lighting​
  • The Beiben Outline Lamp Module, featuring dual High beam assemblies and a robust fastening system, sets a benchmark for visibility and reliability in commercial vehicle lighting. By combining powerful illumination, rugged materials, and user-centric engineering, Beiben ensures this module delivers uncompromising performance—exemplifying the brand’s commitment to solutions that enhance driver safety and fleet efficiency in the most demanding environments.

Product Parameters of Beiben Outline Lamp Module

No. Part Number Part Name English  Quantity
1 002 820 04 56 High beam assembly 1
2 002 820 04 56 High beam assembly 1
3 100845 042081 Self-tapping screws 4
4 002 994 08 45 Clip nuts 4
5 381 826 06 11 Fixing plate 1
6 109074 042506 Combination screws 4
7 000 988 16 25 Expanding clips 4
