What is the Beiben Module For Connecting Leaf Springs To Balanced？

  • Beiben Module For Connecting Leaf Springs To Balanced Suspension
  • Introduction
  • The Beiben Module for Connecting Leaf Springs to Balanced Suspension is a critical component designed to establish a robust, vibration-resistant link between the rear leaf springs and the vehicle’s balanced suspension system. Engineered for heavy-duty commercial vehicles, this module ensures optimal load distribution, minimizes stress concentrations, and enhances ride stability, even under extreme operational conditions.
  • Core Components and Structural Design
  • At the heart of the module is the Rear leaf spring assembly, a multi-layered steel structure designed to absorb shocks and distribute loads evenly. This assembly is secured by a Leaf spring cover, which protects the springs from debris and moisture while providing a mounting surface for auxiliary components. The Leaf spring U-bolt—a high-tensile steel fastener—encircles the spring and axle, clamping them firmly to the Leaf spring seat, which is welded or bolted to the balanced suspension bracket.
  • Support and Cushioning Systems
  • Brackets and Rubber cushioning blocks play a pivotal role in the module’s performance. The brackets, fabricated from high-strength steel, provide rigid support for the leaf spring seats, ensuring precise alignment with the suspension system. The rubber cushioning blocks, positioned between the leaf springs and seats, dampen vibrations and reduce noise, enhancing comfort and preventing metal-to-metal contact that could cause wear. A Centering pin is integrated to maintain exact vertical and lateral positioning of the leaf spring relative to the seat, eliminating play and ensuring consistent load transfer.
  • Precision Fastening Mechanism
  • The module employs a secure fastening system featuring Hexagonal shoulder bolts, Hexagonal nuts, Washers, and torque-specified hardware. The shoulder bolts, designed to withstand shear forces, connect the leaf spring seats to the brackets, while washers distribute clamping force to protect mating surfaces from damage. Each nut is tightened to precise torque specifications, ensuring the U-bolts maintain constant pressure on the leaf spring assembly and preventing loosening due to road vibrations. This meticulous fastening approach guarantees a reliable, long-lasting connection.
  • Engineering Excellence for Durability
  • Every component in the Beiben module undergoes rigorous testing to meet stringent quality standards. The Leaf spring U-bolts and brackets are heat-treated for enhanced tensile strength, while the rubber cushioning blocks are formulated to resist ozone, temperature fluctuations, and mechanical fatigue. The Centering pin is precision-machined for a tight fit, and all metal components receive anti-corrosion coatings to endure harsh environmental conditions. The modular design allows for straightforward installation and maintenance, reducing downtime and operational costs.
  • Conclusion: Reliable Load Transfer for Heavy-Duty Applications
  • The Beiben Module for Connecting Leaf Springs to Balanced Suspension delivers the strength, precision, and durability required to support the demanding needs of commercial vehicles. By integrating a robust leaf spring assembly, vibration-dampening cushioning blocks, and a secure fastening system, Beiben ensures this module provides a stable, efficient link between the suspension and leaf springs, enhancing vehicle safety, longevity, and performance. This component exemplifies Beiben’s commitment to engineering excellence in heavy-duty vehicle systems.

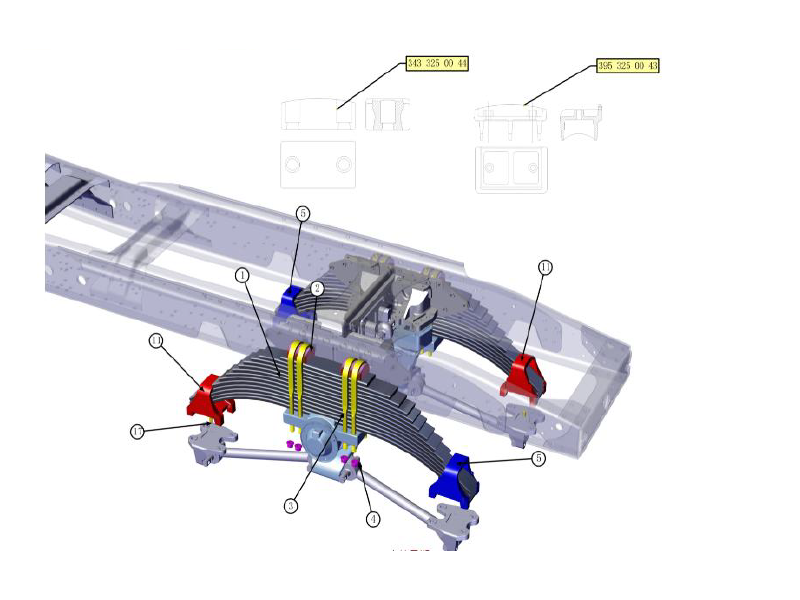

Product Parameters of Beiben Module For Connecting Leaf Springs To Balanced

No. Part Number Part Name English  Quantity
1 560 320 04 06 Rear leaf spring assembly 2
2 560 351 03 26 Leaf spring cover 4
3 560 351 04 25 Leaf spring U-bolt 8
4 001 990 21 51 Hexagonal nut 16
5 659 325 00 19 Leaf spring seat 2
6 395 325 00 43 Bracket 2
7 343 325 00 44 Rubber cushioning block 2
8 001 990 97 04 Hexagonal shoulder bolt 4
9 007349 010002 Washers 4
10 106184 010003 Nut 4
11 659 325 01 19 Leaf spring seat 2
12 395 325 00 43 Bracket 2
13 343 325 00 44 Rubber cushioning block 2
14 001 990 97 04 Hexagonal shoulder bolt 4
15 007349 010002 Washers 4
16 106184 010003 Nut 4
17 389 325 00 74 Centering pin 4
